Construction:
Double braided
Features:
Eye splicing at both ends
High strength
Excellent UV resistance
Good abrasion resistance
Bespoke diameter and length is available
Applications: Cable Pulling
Made of high tenacity low stretch polyester fiber, double braided constructure is ideal for cable pulling rope, factory spliced 6” pulling eyes at each end.
| Item Number | Size (mm) | Size(inch) | Circ.(inch) | Weight(kg/100m) | Weight(lb/100ft) | Breaking Load (kg) | Breaking Load(lb) |
2322062 | 10 | 3/8 | 1-1/8 | 7.5 | 5.04 | 2270 | 5000 |
2322082 | 12 | 1/2 | 1-1/2 | 14.3 | 9.60 | 4540 | 10000 |
2322092 | 14 | 9/16 | 1-3/4 | 19.5 | 13.09 | 6356 | 14000 |
2322102 | 16 | 5/8 | 2 | 24.2 | 16.25 | 7945 | 17500 |
2322112 | 18 | 3/4 | 2-1/4 | 29.3 | 19.67 | 9988 | 22000 |
2322132 | 22 | 7/8 | 2-3/4 | 47 | 31.55 | 14074 | 31000 |
2322142 | 24 | 1 | 3 | 57 | 38.27 | 18614 | 41000 |
2322162 | 28 | 1-1/8 | 3-1/2 | 67 | 44.98 | 21338 | 47000 |
2322172 | 30 | 1-1/4 | 3-3/4 | 84 | 56.39 | 24970 | 55000 |
2322202 | 36 | 1-1/2 | 4-1/2 | 115 | 77.21 | 33142 | 73000 |
Made of Ultra High Molecular Weight Polyethylene fiber(HMPE), super high break strength but very light weight compared with traditional polyester double braid rope,best choice for cable pulling rope, factory spliced 6” pulling eyes at each end.
Made of high tenacity low stretch polyester fiber, double braided constructure is ideal for cable pulling rope, factory spliced 6” pulling eyes at each end.

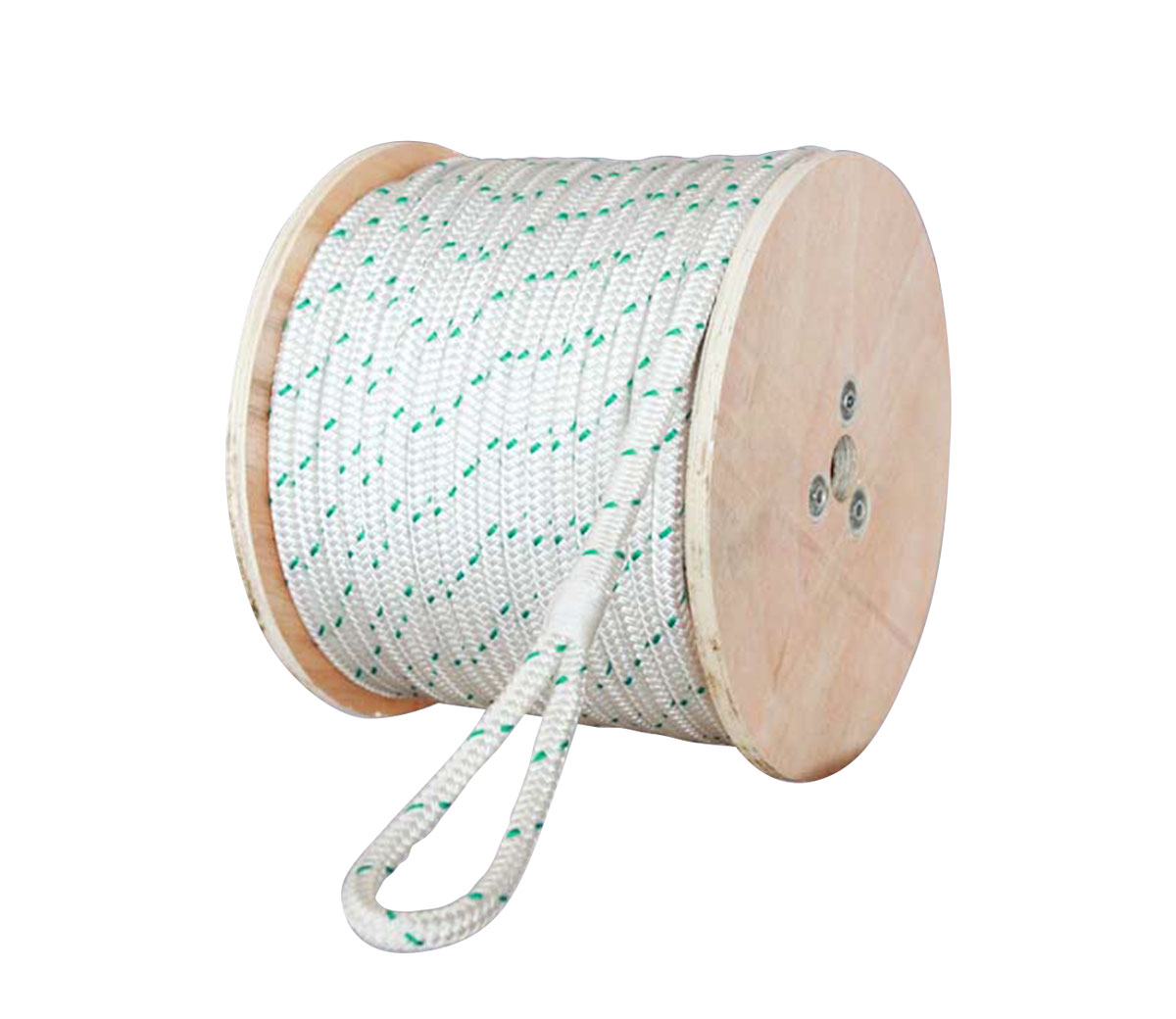

Polyester pulling rope
