Construction:
3 strand
Features:
Specific Gravity:0.96g/cm³
Melting Point:165℃
Breaking Elongation:12%-20%
Abrasion Resistance:Very Good
Chemical Resistance:Very Good
UV Resistance:Good
Water Absorption:0%
Wet-dry Strength Ratio:100%
Applications: Folating Tow Line
Mooring Line
Tie-up Line
Fishing Line

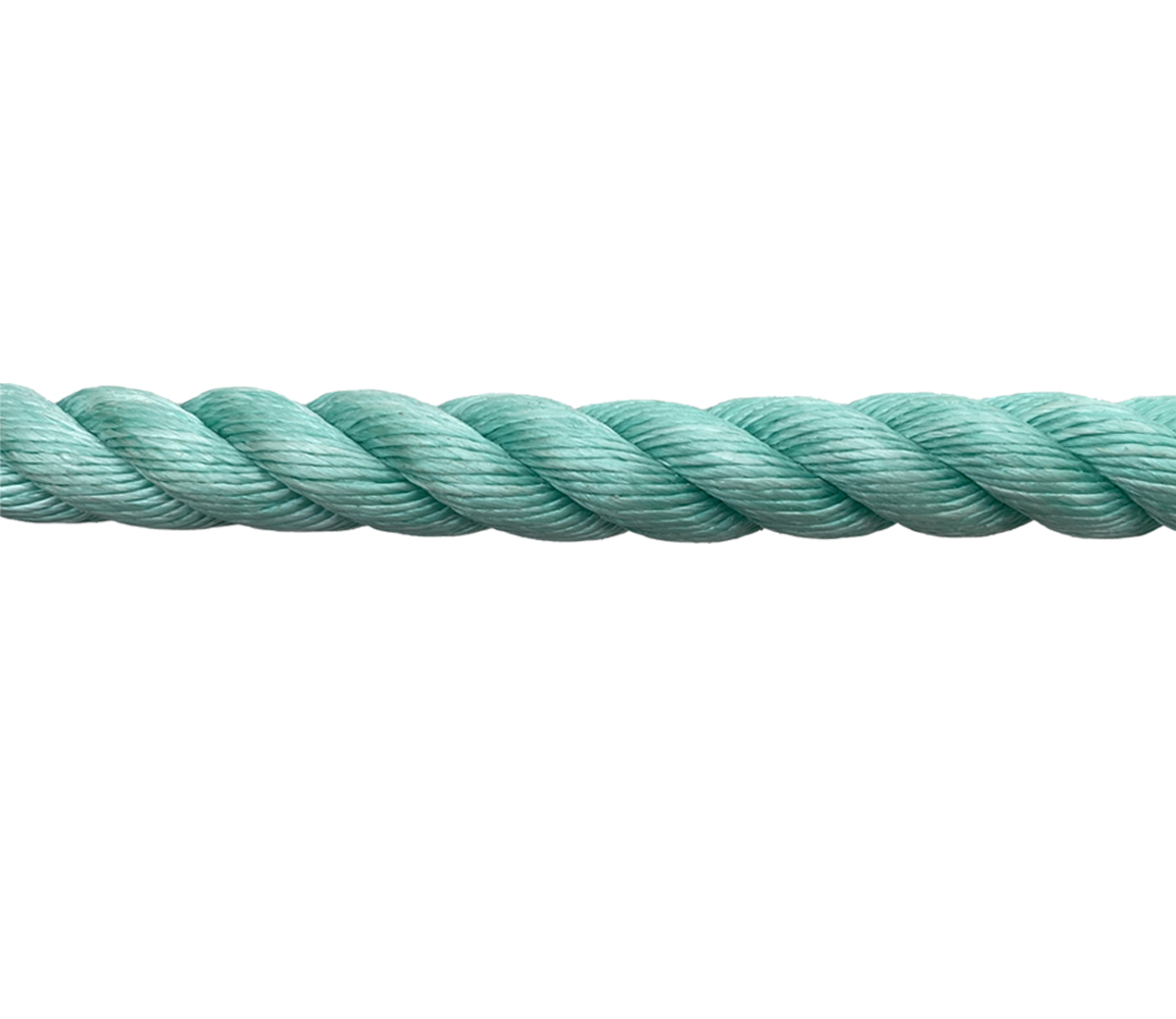

Made of high tenacity polyolefin fiber, which is the stronger rope among PP, PE and Polyolefin ropes. Excellent breaking strength and remarkable abrasion resistance.
| Dia. | Circ. | Weight | Unspliced MBL | Spliced MBL | ||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN |
| 12 | 1/2 | 1-1/2 | 7.11 | 4.77 | 2.6 | 25 | 2.2 | 22 |
| 14 | 9/16 | 1-3/4 | 9.14 | 6.14 | 3.1 | 30 | 2.8 | 27 |
| 16 | 5/8 | 2 | 11.2 | 7.52 | 3.8 | 37 | 3.4 | 33 |
| 18 | 3/4 | 2-1/4 | 16.1 | 10.81 | 5.1 | 50 | 4.6 | 45 |
| 22 | 7/8 | 2-3/4 | 22 | 14.77 | 7.1 | 70 | 6.4 | 63 |
| 24 | 1 | 3 | 27.8 | 18.66 | 8.7 | 85 | 7.8 | 76 |
| 26 | 1-1/16 | 3-1/4 | 31.5 | 21.15 | 9.7 | 95 | 8.7 | 85 |
| 28 | 1-1/8 | 3-1/2 | 35.3 | 23.70 | 10.8 | 106 | 9.7 | 95 |
| 30 | 1-1/4 | 3-3/4 | 42.7 | 28.67 | 13.1 | 128 | 11.7 | 115 |
| 32 | 1-5/16 | 4 | 47 | 31.55 | 14.3 | 140 | 12.9 | 126 |
| 36 | 1-1/2 | 4-1/2 | 61 | 40.95 | 18.4 | 180 | 16.5 | 162 |
| 40 | 1-5/8 | 5 | 71.1 | 47.73 | 21.5 | 211 | 19.4 | 190 |
| 44 | 1-3/4 | 5-1/2 | 82 | 55.05 | 24.9 | 244 | 22.4 | 220 |
| 48 | 2 | 6 | 106.9 | 71.77 | 31.5 | 309 | 28.4 | 278 |
| 52 | 2-1/8 | 6-1/2 | 120.7 | 81.03 | 35.5 | 348 | 31.9 | 313 |
| 56 | 2-1/4 | 7 | 136.2 | 91.44 | 40.1 | 393 | 36.0 | 353 |
| 60 | 2-1/2 | 7-1/2 | 165.2 | 110.91 | 48.5 | 475 | 43.7 | 428 |
| 64 | 2-5/8 | 8 | 186 | 124.87 | 54.5 | 534 | 49.0 | 480 |
| 68 | 2-3/4 | 8-1/2 | 218.8 | 146.89 | 63.9 | 626 | 57.4 | 563 |
| 72 | 3 | 9 | 236.6 | 158.85 | 69.4 | 680 | 62.4 | 612 |
| 80 | 3-1/4 | 10 | 287.2 | 192.82 | 81.9 | 803 | 73.8 | 723 |
| 88 | 3-7/16 | 11 | 385 | 258.48 | 104.4 | 1023 | 94.0 | 921 |
| 96 | 3-3/4 | 460 | 308.83 | 112.2 | 1100 | 101.0 | 990 | |
| 100 | 4 | 12 | 500 | 335.68 | 123.5 | 1210 | 111.1 | 1089 |
Size
TOUGH-HS 3
123.56KB
Made of high tenacity polyolefin fiber, which is the stronger rope among PP, PE and Polyolefin ropes. Excellent breaking strength and remarkable abrasion resistance.
This rope works well in a variety of marine applications requiring durable, rot-proof lines that sink. It can offer good strength and resistance to abrasion and UV light. We can provide leaded ground line in both coils and reels.
Updated product of High Tenacity polypropylene & polyester, it's superior to pure polyester or polypropylene only, lighter weight than polyester and stronger break strength than polypropylene, this rope is smooth, non-rotational and excellent coefficient of friction.
Polyester ropes offer a low stretch & resist most chemicals, rot, and mildew, including acids which can cause damage to nylon rope. With good abrasion and excellent U.V resistance Polyester won’t lose strength when wet unlike nylon will.
Nylon filament is steam heat set prior to twisting to reduce rope shrinkage in the field. Nylon has the highest stretch, strength, and shock absorbency of any synthetic rope.
Made of high tenacity polyolefin fiber, which is the stronger rope among PP, PE and Polyolefin ropes. Excellent breaking strength and remarkable abrasion resistance.
High strength floating rope. Excellent anti-abrasion properties contribute to longer working life, 3/8/12 strand structure, makes this rope a multi purpose ideal for general industrial & commercial fishing applications.
Made by normal polypropylene fiber, makes this mooring line with light weight, very easy to handle and keep same strength in wet or dry environment. Floats and good UV resistance.
