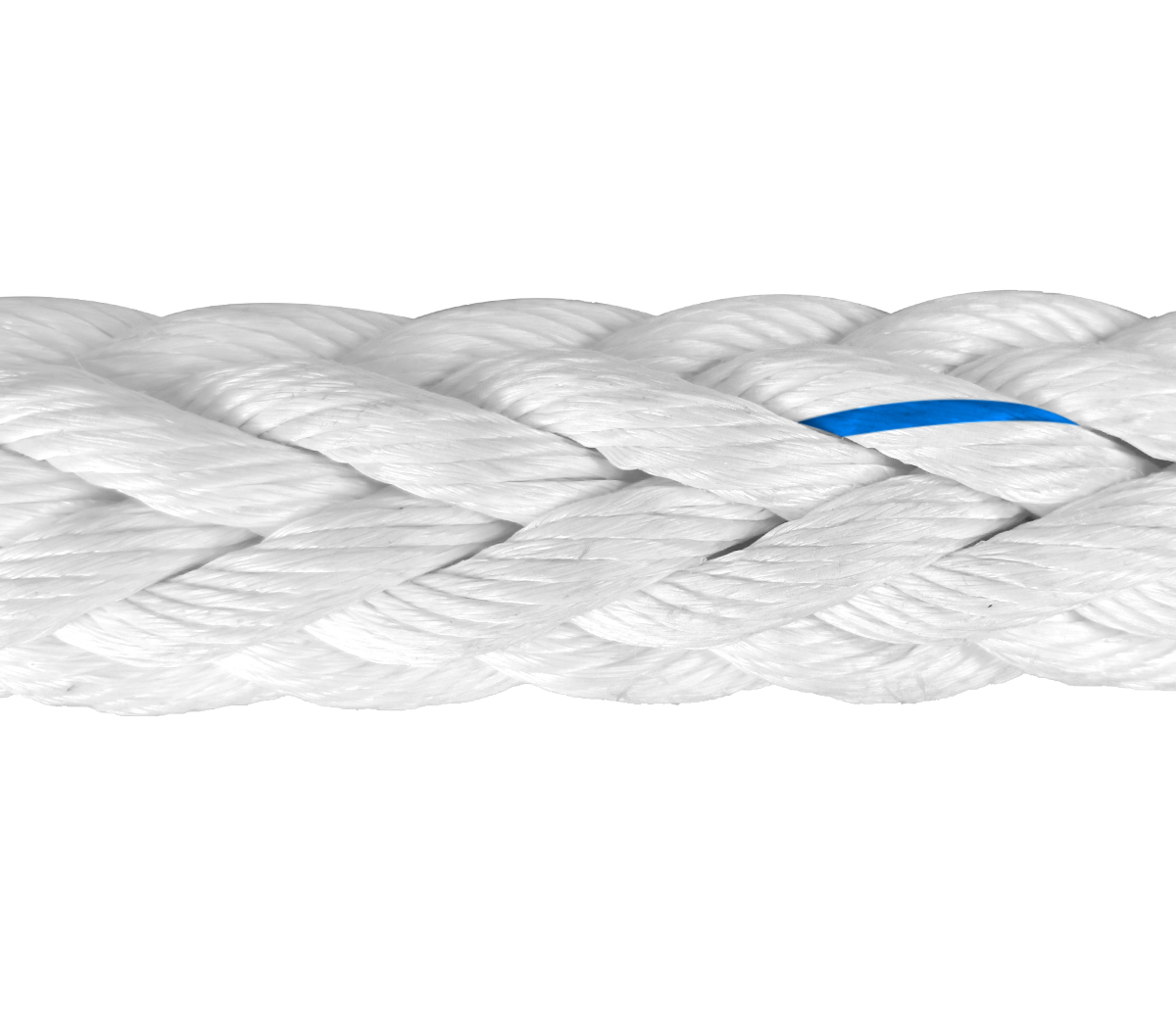

HIGH TENACITY POLYPROPYLENE
12-STRAND
Features:
Specific Gravity: 0.91~0.93
Melting Point: 165℃
Breaking Elongation: 12%~20%
Abrasion Resistance: Very Good
Chemical Resistance: Very Good
UV Resistance: Very Good
Water Absorption: 0.01%
Wet-dry Strength Ratio: Dry ≈ Wet
Applications:
Floating Tow Lines
Mooring Lines
Tie-up Lines
Anchor Lines
Fishing Lines
Pick-up Lines
Made of high tenacity polyolefin fiber, which is the stronger rope among PP, PE and Polyolefin ropes. Excellent breaking strength and remarkable abrasion resistance.
Dia | Circ. | Weight | Code | 8-Strand | Code | 12-Strand | ||||||||
Unspliced MBL | LDBF, Spliced MBL | Unspliced MBL | LDBF, Spliced MBL | |||||||||||
mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | ton | kN | ton | kN | ||
24 | 1 | 3 | 23.5 | 15.8 | 6107514 | 11.1 | 109 | 10.0 | 98 | 6107614 | 11.6 | 113 | 10.4 | 102 |
26 | 1-1/16 | 3-1/4 | 27.5 | 18.5 | 6107515 | 13.0 | 127 | 11.7 | 114 | 6107615 | 13.5 | 132 | 12.1 | 119 |
28 | 1-1/8 | 3-1/2 | 32.0 | 21.5 | 6107516 | 14.9 | 146 | 13.4 | 131 | 6107616 | 15.5 | 152 | 13.9 | 137 |
30 | 1-1/4 | 3-3/4 | 36.7 | 24.6 | 6107517 | 16.9 | 166 | 15.2 | 149 | 6107617 | 17.6 | 173 | 15.9 | 155 |
32 | 1-5/16 | 4 | 41.8 | 28.1 | 6107518 | 19.2 | 188 | 17.3 | 169 | 6107618 | 20.0 | 196 | 18.0 | 176 |
36 | 1-1/2 | 4-1/2 | 52.8 | 35.4 | 6107520 | 24.0 | 235 | 21.6 | 212 | 6107620 | 24.9 | 244 | 22.4 | 220 |
40 | 1-5/8 | 5 | 65.3 | 43.8 | 6107522 | 29.4 | 288 | 26.4 | 259 | 6107622 | 30.6 | 300 | 27.5 | 270 |
44 | 1-3/4 | 5-1/2 | 78.9 | 53.0 | 6107523 | 35.0 | 343 | 31.5 | 309 | 6107623 | 36.4 | 357 | 32.8 | 321 |
48 | 2 | 6 | 93.6 | 62.8 | 6107525 | 41.2 | 404 | 37.1 | 364 | 6107625 | 42.9 | 420 | 38.6 | 378 |
52 | 2-1/8 | 6-1/2 | 109.8 | 73.7 | 6107526 | 48.0 | 470 | 43.2 | 423 | 6107626 | 49.9 | 489 | 44.9 | 440 |
56 | 2-1/4 | 7 | 127.8 | 85.8 | 6107527 | 55.1 | 540 | 49.6 | 486 | 6107627 | 57.3 | 562 | 51.6 | 505 |
60 | 2-1/2 | 7-1/2 | 146.7 | 98.5 | 6107528 | 62.4 | 612 | 56.2 | 551 | 6107628 | 64.9 | 636 | 58.5 | 573 |
64 | 2-5/8 | 8 | 167.4 | 112.4 | 6107530 | 70.4 | 690 | 63.4 | 621 | 6107630 | 73.2 | 718 | 65.9 | 646 |
68 | 3-3/4 | 8-1/2 | 189.0 | 126.9 | 6107531 | 79.0 | 774 | 71.1 | 697 | 6107631 | 82.1 | 805 | 73.9 | 724 |
72 | 3 | 9 | 211.5 | 142.0 | 6107533 | 87.9 | 861 | 79.1 | 775 | 6107633 | 91.4 | 895 | 82.2 | 806 |
80 | 3-1/4 | 10 | 261.0 | 175.2 | 6107536 | 106.6 | 1045 | 96.0 | 941 | 6107636 | 110.9 | 1087 | 99.8 | 978 |
88 | 3-5/8 | 11 | 315.9 | 212.1 | 6107538 | 127.6 | 1250 | 114.8 | 1125 | 6107638 | 132.7 | 1300 | 119.4 | 1170 |
96 | 4 | 12 | 375.3 | 252.0 | 6107540 | 150.0 | 1470 | 135.0 | 1323 | 6107640 | 156.0 | 1529 | 140.4 | 1376 |
104 | 4-1/4 | 13 | 441.0 | 296.1 | 6107542 | 173.6 | 1701 | 156.2 | 1531 | 6107642 | 180.5 | 1769 | 162.5 | 1592 |
112 | 4-5/8 | 14 | 511.2 | 343.2 | 6107545 | 201.4 | 1974 | 181.3 | 1777 | 6107645 | 209.5 | 2053 | 188.5 | 1848 |
120 | 5 | 15 | 586.8 | 394.0 | 6107548 | 228.3 | 2237 | 205.4 | 2013 | 6107648 | 237.4 | 2326 | 213.7 | 2094 |
128 | 5-1/4 | 16 | 667.8 | 448.3 | 6107549 | 259.3 | 2541 | 233.4 | 2287 | 6107649 | 269.7 | 2643 | 242.7 | 2378 |
136 | 5-5/8 | 17 | 754.2 | 506.3 | 6107551 | 291.4 | 2856 | 262.3 | 2570 | 6107651 | 303.1 | 2970 | 272.8 | 2673 |
144 | 6 | 18 | 845.1 | 567.4 | 6107552 | 325.7 | 3192 | 293.1 | 2873 | 6107652 | 338.7 | 3320 | 304.9 | 2988 |
152 | 6-1/4 | 19 | 945.0 | 634.4 | 6107554 | 362.1 | 3549 | 325.9 | 3194 | 6107654 | 376.6 | 3691 | 339.0 | 3322 |
160 | 6-5/8 | 20 | 1044.0 | 700.9 | 6107555 | 400.7 | 3927 | 360.6 | 3534 | 6107655 | 416.7 | 4084 | 375.1 | 3676 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
