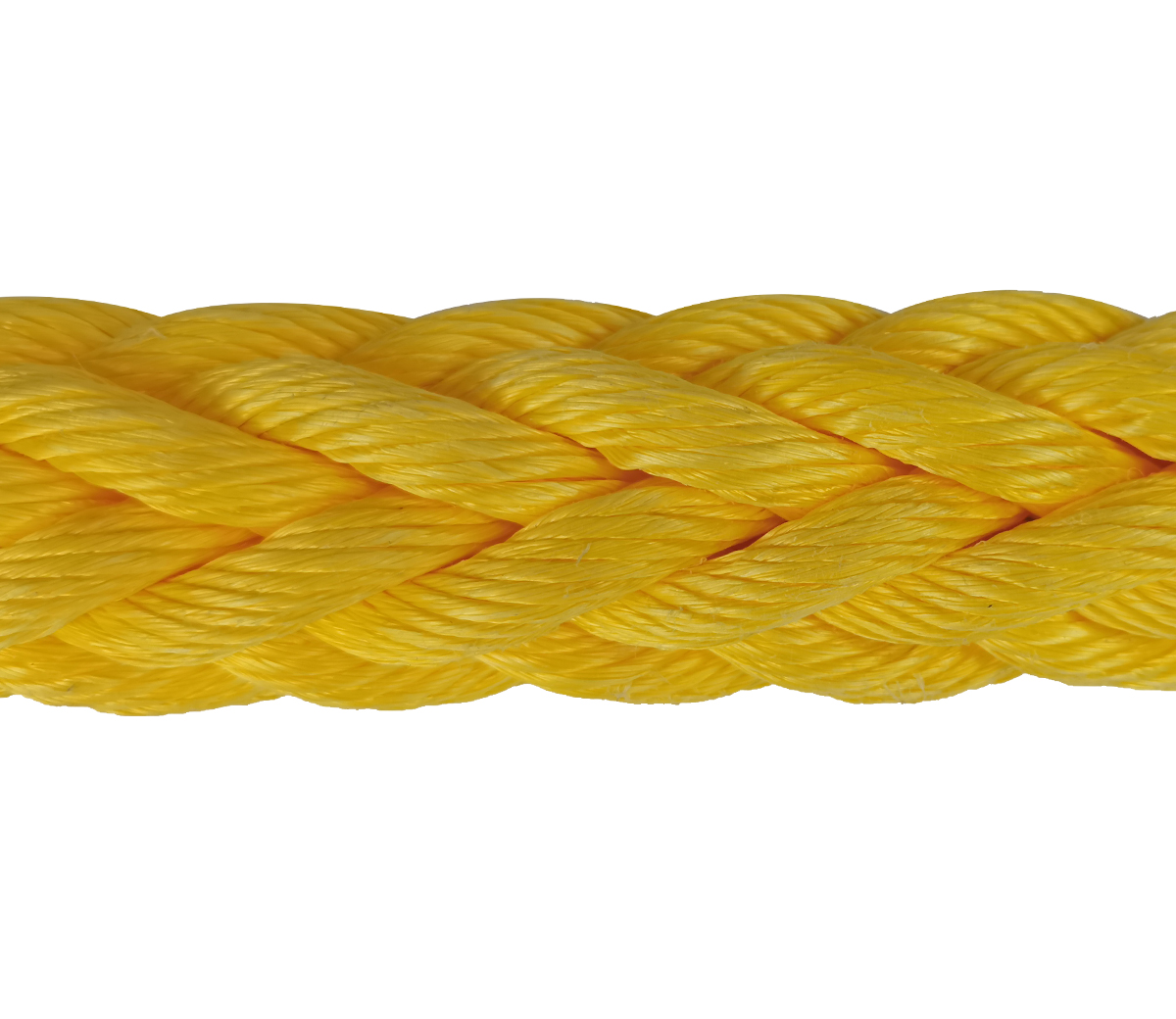

POLYPROPYLENE
12-STRAND
Features:
Specific Gravity: 0.91~0.93
Melting Point: 165℃
Breaking Elongation: 12%~20%
Abrasion Resistance: Very Good
Chemical Resistance: Very Good
UV Resistance: Very Good
Water Absorption: 0.01%
Wet-dry Strength Ratio: Dry ≈ Wet
Applications:
Floating Tow Lines
Mooring Lines
Tie-up Lines
Anchor Lines
Fishing Lines
Pick-up Lines
Made by normal polypropylene fiber, very easy to handle and keep same strength in wet or dry environment. Floats and good UV resistance.
| Dia | Circ. | Weight | Code | 8-Strand | Code | 12-Strand | ||||||||
| Unspliced MBL | LDBF, Spliced MBL | Unspliced MBL | LDBF, Spliced MBL | |||||||||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | ton | kN | ton | kN | ||
| 24 | 1 | 3 | 26.1 | 17.5 | 6106514 | 9.0 | 88 | 8.2 | 80 | 6106614 | 9.3 | 92 | 8.4 | 82 |
| 26 | 1-1/16 | 3-1/4 | 30.6 | 20.5 | 6106515 | 10.5 | 103 | 9.5 | 93 | 6106615 | 10.9 | 107 | 9.8 | 96 |
| 28 | 1-1/8 | 3-1/2 | 35.5 | 23.8 | 6106516 | 12.0 | 118 | 10.8 | 106 | 6106616 | 12.5 | 123 | 11.3 | 110 |
| 30 | 1-1/4 | 3-3/4 | 40.8 | 27.4 | 6106517 | 13.7 | 134 | 12.3 | 121 | 6106617 | 14.2 | 139 | 12.8 | 125 |
| 32 | 1-5/16 | 4 | 46.4 | 31.2 | 6106518 | 15.5 | 152 | 14.0 | 137 | 6106618 | 16.1 | 158 | 14.5 | 142 |
| 36 | 1-1/2 | 4-1/2 | 58.7 | 39.4 | 6106520 | 19.4 | 190 | 17.6 | 172 | 6106620 | 20.2 | 198 | 18.1 | 178 |
| 40 | 1-5/8 | 5 | 72.5 | 48.7 | 6106522 | 23.8 | 233 | 21.4 | 210 | 6106622 | 24.7 | 242 | 22.3 | 218 |
| 44 | 1-3/4 | 5-1/2 | 87.7 | 58.9 | 6106523 | 28.4 | 278 | 25.5 | 250 | 6106623 | 29.5 | 289 | 26.6 | 260 |
| 48 | 2 | 6 | 104.0 | 69.8 | 6106525 | 33.4 | 327 | 30.1 | 295 | 6106625 | 34.7 | 340 | 31.2 | 306 |
| 52 | 2-1/8 | 6-1/2 | 122.0 | 81.9 | 6106526 | 38.9 | 381 | 35.0 | 343 | 6106626 | 40.4 | 396 | 36.4 | 357 |
| 56 | 2-1/4 | 7 | 142.0 | 95.3 | 6106527 | 44.6 | 437 | 40.2 | 394 | 6106627 | 46.4 | 454 | 41.7 | 409 |
| 60 | 2-1/2 | 7-1/2 | 163.0 | 109.4 | 6106528 | 50.6 | 496 | 45.5 | 446 | 6106628 | 52.6 | 516 | 47.4 | 464 |
| 64 | 2-5/8 | 8 | 186.0 | 124.9 | 6106530 | 56.9 | 558 | 51.2 | 502 | 6106630 | 59.2 | 580 | 53.3 | 522 |
| 68 | 3-3/4 | 8-1/2 | 210.0 | 141.0 | 6106531 | 63.9 | 626 | 57.6 | 564 | 6106631 | 66.4 | 651 | 59.8 | 586 |
| 72 | 3 | 9 | 235.0 | 157.8 | 6106533 | 71.1 | 697 | 64.0 | 627 | 6106633 | 74.0 | 725 | 66.6 | 652 |
| 80 | 3-1/4 | 10 | 290.0 | 194.7 | 6106536 | 86.3 | 846 | 77.8 | 762 | 6106636 | 89.8 | 880 | 80.8 | 792 |
| 88 | 3-5/8 | 11 | 351.0 | 235.6 | 6106538 | 103.3 | 1012 | 92.9 | 910 | 6106638 | 107.4 | 1052 | 96.7 | 947 |
| 96 | 4 | 12 | 417.0 | 280.0 | 6106540 | 121.4 | 1190 | 109.3 | 1071 | 6106640 | 126.3 | 1238 | 113.7 | 1114 |
| 104 | 4-1/4 | 13 | 490.0 | 329.0 | 6106542 | 140.5 | 1377 | 126.6 | 1241 | 6106642 | 146.1 | 1432 | 131.5 | 1289 |
| 112 | 4-5/8 | 14 | 568.0 | 381.3 | 6106545 | 163.1 | 1598 | 146.6 | 1437 | 6106645 | 169.6 | 1662 | 152.6 | 1496 |
| 120 | 5 | 15 | 652.0 | 437.7 | 6106548 | 184.8 | 1811 | 166.5 | 1632 | 6106648 | 192.2 | 1883 | 173.0 | 1695 |
| 128 | 5-1/4 | 16 | 742.0 | 498.2 | 6106549 | 209.9 | 2057 | 189.1 | 1853 | 6106649 | 218.3 | 2139 | 196.5 | 1925 |
| 136 | 5-5/8 | 17 | 838.0 | 562.6 | 6106551 | 235.9 | 2312 | 212.6 | 2083 | 6106651 | 245.4 | 2404 | 220.8 | 2164 |
| 144 | 6 | 18 | 939.0 | 630.4 | 6106552 | 263.7 | 2584 | 237.7 | 2329 | 6106652 | 274.2 | 2687 | 246.8 | 2419 |
| 152 | 6-1/4 | 19 | 1050.0 | 704.9 | 6106554 | 293.2 | 2873 | 263.7 | 2584 | 6106654 | 304.9 | 2988 | 274.4 | 2689 |
| 160 | 6-5/8 | 20 | 1160.0 | 778.0 | 6106555 | 324.4 | 3179 | 292.3 | 2865 | 6106655 | 337.4 | 3306 | 303.6 | 2976 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
