Features:
Specific Gravity: 0.99
Melting Point: 165/260℃
Abrasion Resistance: Very Good
Chemical Resistance: Very Good
UV Resistance: Very Good
Water Absorption: 0%
Wet-dry Strength Ratio: Dry ≈ Wet
Applications:
Mooring and Tie-up Lines
Mooring Pendants
Tug Assist Lines
Anchor Lines
Towing Lines
Mooring Lines

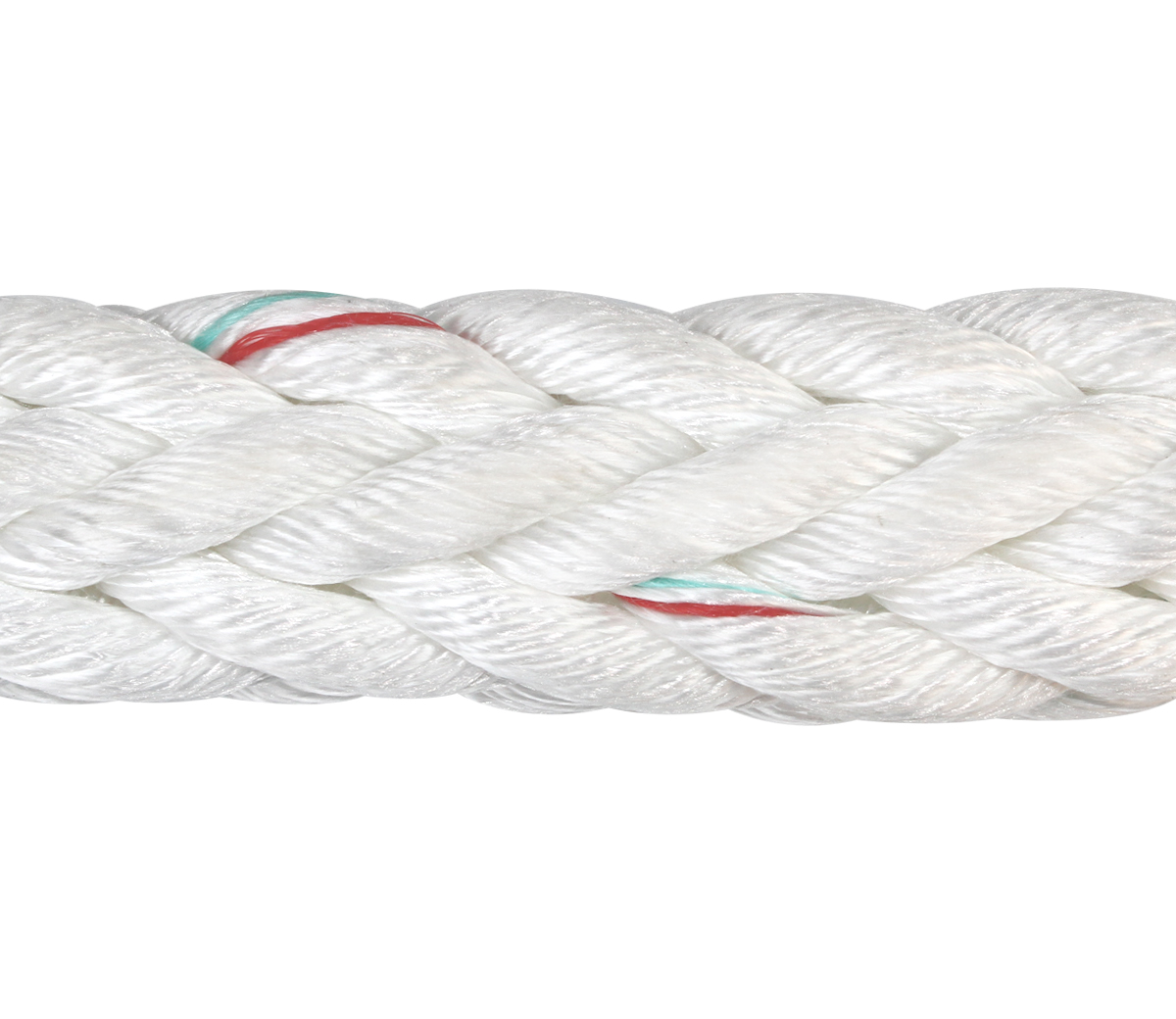

The reinforced composition of high tenacity polyester & polyolefin creates superior breaking strength. The techinically designed construction provides higher tensile strength, more flexibility and better abrasion resistance than normal composite rope. TOUGH-MIX PLUS retains stability, safety and higher residual tensile strength after repeated mooring operations.
| Dia | Circ. | Weight | Code | 8-Strand | Code | 12-Strand | ||||||||
| Unspliced MBL | LDBF, Spliced MBL | Unspliced MBL | LDBF, Spliced MBL | |||||||||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | ton | kN | ton | kN | ||
| 24 | 1 | 3 | 30.7 | 20.6 | 6109514 | 13.3 | 130 | 11.9 | 117 | 6109614 | 13.7 | 133.9 | 12.3 | 121 |
| 26 | 1-1/16 | 3-1/4 | 36.1 | 24.2 | 6109515 | 15.6 | 153 | 14.1 | 138 | 6109615 | 16.1 | 157.6 | 14.5 | 142 |
| 28 | 1-1/8 | 3-1/2 | 41.8 | 28.1 | 6109516 | 18.0 | 176 | 16.1 | 158 | 6109616 | 18.5 | 181.3 | 16.6 | 163 |
| 30 | 1-1/4 | 3-3/4 | 48.1 | 32.3 | 6109517 | 20.4 | 200 | 18.4 | 180 | 6109617 | 21.0 | 206.0 | 18.9 | 185 |
| 32 | 1-5/16 | 4 | 54.7 | 36.7 | 6109518 | 23.0 | 225 | 20.7 | 203 | 6109618 | 23.6 | 231.8 | 21.3 | 209 |
| 36 | 1-1/2 | 4-1/2 | 69.2 | 46.5 | 6109520 | 29.0 | 284 | 26.0 | 255 | 6109620 | 29.8 | 292.5 | 26.8 | 263 |
| 40 | 1-5/8 | 5 | 85.4 | 57.3 | 6109522 | 35.4 | 347 | 31.8 | 312 | 6109622 | 36.5 | 357.4 | 32.8 | 321 |
| 44 | 1-3/4 | 5-1/2 | 103.3 | 69.4 | 6109523 | 42.4 | 416 | 38.2 | 374 | 6109623 | 43.7 | 428.5 | 39.3 | 385 |
| 48 | 2 | 6 | 122.1 | 82.0 | 6109525 | 50.1 | 491 | 45.2 | 443 | 6109625 | 51.6 | 505.7 | 46.6 | 456 |
| 52 | 2-1/8 | 6-1/2 | 145.2 | 97.5 | 6109526 | 58.4 | 572 | 52.7 | 516 | 6109626 | 60.1 | 589.2 | 54.2 | 531 |
| 56 | 2-1/4 | 7 | 167.2 | 112.3 | 6109527 | 67.3 | 660 | 60.6 | 594 | 6109627 | 69.4 | 679.8 | 62.4 | 612 |
| 60 | 2-1/2 | 7-1/2 | 192.5 | 129.2 | 6109528 | 76.8 | 753 | 69.2 | 678 | 6109628 | 79.1 | 775.6 | 71.3 | 698 |
| 64 | 2-5/8 | 8 | 218.9 | 147.0 | 6109530 | 86.9 | 852 | 78.3 | 767 | 6109630 | 89.5 | 877.6 | 80.6 | 790 |
| 68 | 3-3/4 | 8-1/2 | 247.5 | 166.2 | 6109531 | 97.3 | 954 | 87.7 | 859 | 6109631 | 100.3 | 982.6 | 90.3 | 885 |
| 72 | 3 | 9 | 277.2 | 186.1 | 6109533 | 108.7 | 1065 | 97.9 | 959 | 6109633 | 111.9 | 1097.0 | 100.8 | 988 |
| 80 | 3-1/4 | 10 | 342.1 | 229.7 | 6109536 | 132.7 | 1300 | 119.4 | 1170 | 6109636 | 136.6 | 1339.0 | 123.0 | 1205 |
| 88 | 3-5/8 | 11 | 412.5 | 276.9 | 6109538 | 159.8 | 1566 | 143.3 | 1404 | 6109638 | 164.6 | 1613.0 | 147.6 | 1446 |
| 96 | 4 | 12 | 491.7 | 330.1 | 6109540 | 188.8 | 1850 | 169.5 | 1661 | 6109640 | 194.4 | 1905.5 | 174.6 | 1711 |
| 104 | 4-1/4 | 13 | 578.6 | 388.5 | 6109542 | 219.1 | 2147 | 197.0 | 1931 | 6109642 | 225.7 | 2211.4 | 203.0 | 1989 |
| 112 | 4-5/8 | 14 | 665.5 | 446.8 | 6109545 | 253.5 | 2484 | 228.7 | 2241 | 6109645 | 261.1 | 2558.5 | 235.5 | 2308 |
| 120 | 5 | 15 | 767.8 | 515.5 | 6109548 | 289.3 | 2835 | 260.4 | 2552 | 6109648 | 298.0 | 2920.1 | 268.2 | 2629 |
| 128 | 5-1/4 | 16 | 874.5 | 587.1 | 6109549 | 326.5 | 3200 | 293.5 | 2876 | 6109649 | 336.3 | 3296.0 | 302.3 | 2962 |
| 136 | 5-5/8 | 17 | 984.5 | 661.0 | 6109551 | 366.4 | 3591 | 329.3 | 3227 | 6109651 | 377.4 | 3698.7 | 339.2 | 3324 |
| 144 | 6 | 18 | 1111 | 745.9 | 6109552 | 409.2 | 4010 | 367.9 | 3605 | 6109652 | 421.5 | 4130.3 | 378.9 | 3713 |
| 152 | 6-1/4 | 19 | 1243 | 834.5 | 6109554 | 453.3 | 4442 | 407.8 | 3996 | 6109654 | 466.9 | 4575.3 | 420.0 | 4116 |
| 160 | 6-5/8 | 20 | 1375 | 923.1 | 6109555 | 500.1 | 4901 | 450.5 | 4415 | 6109655 | 515.1 | 5048.0 | 464.0 | 4547 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
A 24 strands rope typically refers to a rope that is braided using 12 strands, with each strand potentially being a double braid. The 24 construction rope, with its additional strand layers, provides greater flexibility, making it easier to handle and more adaptable to various applications.With its additional strand layers, provides greater flexibility, making it easier to handle and more adaptable to various applications. With multiple strands, the construction rope distributes loads more evenly, reducing stress on individual strands and enhancing overall rope performance.This construction rope allows for smoother handling, reducing the risk of kinking or twisting during use.
The reinforced composition of high tenacity polyester & polyolefin creates superior breaking strength. The techinically designed construction provides higher tensile strength, more flexibility and better abrasion resistance than normal composite rope. TOUGH-MIX PLUS retains stability, safety and higher residual tensile strength after repeated mooring operations.
Updated product of High Tenacity polyester & polypropylene, it's superior to pure polyester or polypropylene only, lighter weight than polyester and stronger break strength than polypropylene, this rope is smooth , non - rotational and excellent coefficient of friction .
Updated product of High Tenacity polyester & polypropylene, it's superior to pure polyester or polypropylene only, lighter weight than polyester and stronger break strength than polypropylene, this rope is smooth , non - rotational and excellent coefficient of friction .
The reinforced composition of high tenacity polyester & polyolefin creates superior breaking strength. The techinically designed construction provides higher tensile strength, more flexibility and better abrasion resistance than normal composite rope. TOUGH-MIX PLUS retains stability, safety and higher residual tensile strength after repeated mooring operations.
