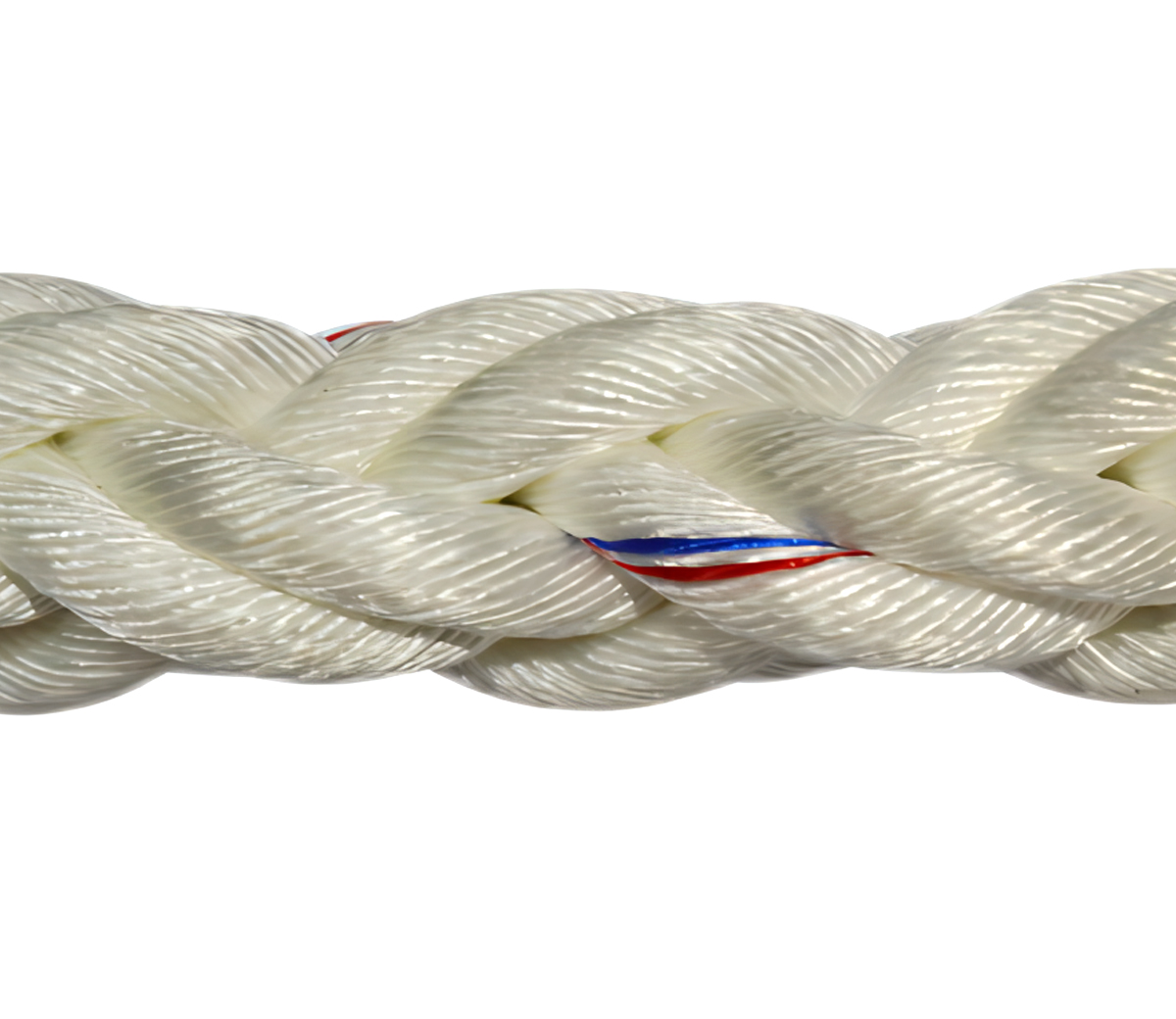

High Tenacity Polyolefin & Polyester Mixed
Structure: 3/8/12-Strand
Features:
Specific Gravity: 0.99
Melting Point: 165/260℃
Abrasion Resistance: Very Good
Chemical Resistance: Very Good
UV Resistance: Very Good
Water Absorption: 0%
Wet-dry Strength Ratio: Dry ≈ Wet
Applications:
Mooring and Tie-up Lines
Mooring Pendants
Tug Assist Lines
Anchor Lines
Towing Lines
Mooring Lines
The reinforced composition of high tenacity polyester & polyolefin creates superior breaking strength. The techinically designed construction provides higher tensile strength, more flexibility and better abrasion resistance than normal composite rope. TOUGH-MIX PLUS retains stability, safety and higher residual tensile strength after repeated mooring operations.
| Dia | Circ. | Weight | Code | 8-Strand | Code | 12-Strand | ||||||||
| Unspliced MBL | LDBF, Spliced MBL | Unspliced MBL | LDBF, Spliced MBL | |||||||||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | ton | kN | ton | kN | ||
| 24 | 1 | 3 | 30.7 | 20.6 | 6109514 | 13.3 | 130 | 11.9 | 117 | 6109614 | 13.7 | 133.9 | 12.3 | 121 |
| 26 | 1-1/16 | 3-1/4 | 36.1 | 24.2 | 6109515 | 15.6 | 153 | 14.1 | 138 | 6109615 | 16.1 | 157.6 | 14.5 | 142 |
| 28 | 1-1/8 | 3-1/2 | 41.8 | 28.1 | 6109516 | 18.0 | 176 | 16.1 | 158 | 6109616 | 18.5 | 181.3 | 16.6 | 163 |
| 30 | 1-1/4 | 3-3/4 | 48.1 | 32.3 | 6109517 | 20.4 | 200 | 18.4 | 180 | 6109617 | 21.0 | 206.0 | 18.9 | 185 |
| 32 | 1-5/16 | 4 | 54.7 | 36.7 | 6109518 | 23.0 | 225 | 20.7 | 203 | 6109618 | 23.6 | 231.8 | 21.3 | 209 |
| 36 | 1-1/2 | 4-1/2 | 69.2 | 46.5 | 6109520 | 29.0 | 284 | 26.0 | 255 | 6109620 | 29.8 | 292.5 | 26.8 | 263 |
| 40 | 1-5/8 | 5 | 85.4 | 57.3 | 6109522 | 35.4 | 347 | 31.8 | 312 | 6109622 | 36.5 | 357.4 | 32.8 | 321 |
| 44 | 1-3/4 | 5-1/2 | 103.3 | 69.4 | 6109523 | 42.4 | 416 | 38.2 | 374 | 6109623 | 43.7 | 428.5 | 39.3 | 385 |
| 48 | 2 | 6 | 122.1 | 82.0 | 6109525 | 50.1 | 491 | 45.2 | 443 | 6109625 | 51.6 | 505.7 | 46.6 | 456 |
| 52 | 2-1/8 | 6-1/2 | 145.2 | 97.5 | 6109526 | 58.4 | 572 | 52.7 | 516 | 6109626 | 60.1 | 589.2 | 54.2 | 531 |
| 56 | 2-1/4 | 7 | 167.2 | 112.3 | 6109527 | 67.3 | 660 | 60.6 | 594 | 6109627 | 69.4 | 679.8 | 62.4 | 612 |
| 60 | 2-1/2 | 7-1/2 | 192.5 | 129.2 | 6109528 | 76.8 | 753 | 69.2 | 678 | 6109628 | 79.1 | 775.6 | 71.3 | 698 |
| 64 | 2-5/8 | 8 | 218.9 | 147.0 | 6109530 | 86.9 | 852 | 78.3 | 767 | 6109630 | 89.5 | 877.6 | 80.6 | 790 |
| 68 | 3-3/4 | 8-1/2 | 247.5 | 166.2 | 6109531 | 97.3 | 954 | 87.7 | 859 | 6109631 | 100.3 | 982.6 | 90.3 | 885 |
| 72 | 3 | 9 | 277.2 | 186.1 | 6109533 | 108.7 | 1065 | 97.9 | 959 | 6109633 | 111.9 | 1097.0 | 100.8 | 988 |
| 80 | 3-1/4 | 10 | 342.1 | 229.7 | 6109536 | 132.7 | 1300 | 119.4 | 1170 | 6109636 | 136.6 | 1339.0 | 123.0 | 1205 |
| 88 | 3-5/8 | 11 | 412.5 | 276.9 | 6109538 | 159.8 | 1566 | 143.3 | 1404 | 6109638 | 164.6 | 1613.0 | 147.6 | 1446 |
| 96 | 4 | 12 | 491.7 | 330.1 | 6109540 | 188.8 | 1850 | 169.5 | 1661 | 6109640 | 194.4 | 1905.5 | 174.6 | 1711 |
| 104 | 4-1/4 | 13 | 578.6 | 388.5 | 6109542 | 219.1 | 2147 | 197.0 | 1931 | 6109642 | 225.7 | 2211.4 | 203.0 | 1989 |
| 112 | 4-5/8 | 14 | 665.5 | 446.8 | 6109545 | 253.5 | 2484 | 228.7 | 2241 | 6109645 | 261.1 | 2558.5 | 235.5 | 2308 |
| 120 | 5 | 15 | 767.8 | 515.5 | 6109548 | 289.3 | 2835 | 260.4 | 2552 | 6109648 | 298.0 | 2920.1 | 268.2 | 2629 |
| 128 | 5-1/4 | 16 | 874.5 | 587.1 | 6109549 | 326.5 | 3200 | 293.5 | 2876 | 6109649 | 336.3 | 3296.0 | 302.3 | 2962 |
| 136 | 5-5/8 | 17 | 984.5 | 661.0 | 6109551 | 366.4 | 3591 | 329.3 | 3227 | 6109651 | 377.4 | 3698.7 | 339.2 | 3324 |
| 144 | 6 | 18 | 1111 | 745.9 | 6109552 | 409.2 | 4010 | 367.9 | 3605 | 6109652 | 421.5 | 4130.3 | 378.9 | 3713 |
| 152 | 6-1/4 | 19 | 1243 | 834.5 | 6109554 | 453.3 | 4442 | 407.8 | 3996 | 6109654 | 466.9 | 4575.3 | 420.0 | 4116 |
| 160 | 6-5/8 | 20 | 1375 | 923.1 | 6109555 | 500.1 | 4901 | 450.5 | 4415 | 6109655 | 515.1 | 5048.0 | 464.0 | 4547 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
The reinforced composition of high tenacity polyester & polyolefin creates superior breaking strength. The techinically designed construction provides higher tensile strength, more flexibility and better abrasion resistance than normal composite rope. TOUGH-MIX PLUS retains stability, safety and higher residual tensile strength after repeated mooring operations.
