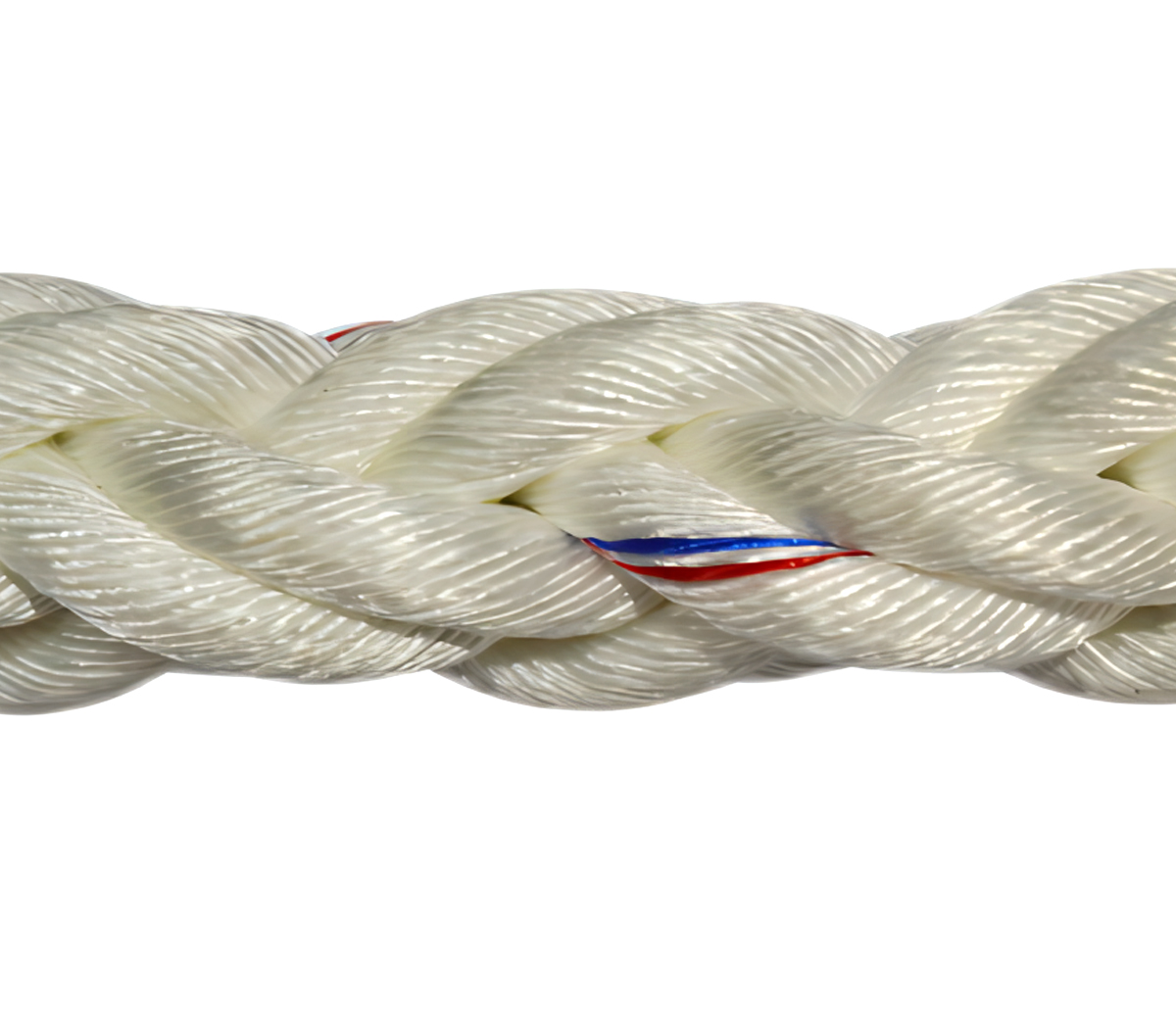

HIGH TENACITY POLYOLEFIN&POLYESTER MIXED
Structure: 8-STRAND
Features:
Specific Gravity: 0.99
Melting Point: 165/260℃
Abrasion Resistance: Good
Chemical Resistance: Very Good
UV Resistance: Very Good
Water Absorption: 0%
Wet-dry Strength Ratio: Dry ≈ Wet
Applications:
Mooring and Tie-up Lines
Mooring Pendants
Tug Assist Line
Anchor Lines
Towing Lines
Mooring Lines
Updated product of High Tenacity polyester & polypropylene, it's superior to pure polyester or polypropylene only, lighter weight than polyester and stronger break strength than polypropylene, this rope is smooth , non - rotational and excellent coefficient of friction .
Dia | Circ. | Weight | Code | 8-Strand | Code | 12-Strand | ||||||||
Unspliced MBL | LDBF, Spliced MBL | Unspliced MBL | LDBF, Spliced MBL | |||||||||||
mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | ton | kN | ton | kN | ||
24 | 1 | 3 | 27.9 | 18.7 | 6110514 | 11.8 | 116 | 10.6 | 104 | 6110614 | 12.3 | 120.6 | 11.0 | 108 |
26 | 1-1/16 | 3-1/4 | 32.8 | 22.0 | 6110515 | 13.9 | 136 | 12.4 | 122 | 6110615 | 14.4 | 141.4 | 12.9 | 127 |
28 | 1-1/8 | 3-1/2 | 38.0 | 25.5 | 6110516 | 15.9 | 156 | 14.3 | 140 | 6110616 | 16.6 | 162.2 | 14.9 | 146 |
30 | 1-1/4 | 3-3/4 | 43.7 | 29.3 | 6110517 | 18.2 | 178 | 16.3 | 160 | 6110617 | 18.9 | 185.1 | 17.0 | 166 |
32 | 1-5/16 | 4 | 49.7 | 33.4 | 6110518 | 20.4 | 200 | 18.4 | 180 | 6110618 | 21.2 | 208.0 | 19.1 | 187 |
36 | 1-1/2 | 4-1/2 | 62.9 | 42.2 | 6110520 | 25.7 | 252 | 23.2 | 227 | 6110620 | 26.7 | 262.1 | 24.1 | 236 |
40 | 1-5/8 | 5 | 77.6 | 52.1 | 6110522 | 31.4 | 308 | 28.3 | 277 | 6110622 | 32.7 | 320.3 | 29.4 | 288 |
44 | 1-3/4 | 5-1/2 | 93.9 | 63.0 | 6110523 | 37.8 | 370 | 33.9 | 332 | 6110623 | 39.3 | 384.8 | 35.2 | 345 |
48 | 2 | 6 | 111.0 | 74.5 | 6110525 | 44.6 | 437 | 40.2 | 394 | 6110625 | 46.4 | 454.5 | 41.8 | 410 |
52 | 2-1/8 | 6-1/2 | 132.0 | 88.6 | 6110526 | 51.9 | 509 | 46.7 | 458 | 6110626 | 54.0 | 529.4 | 48.6 | 476 |
56 | 2-1/4 | 7 | 152.0 | 102.0 | 6110527 | 59.9 | 587 | 53.9 | 528 | 6110627 | 62.3 | 610.5 | 56.0 | 549 |
60 | 2-1/2 | 7-1/2 | 175.0 | 117.5 | 6110528 | 68.4 | 670 | 61.4 | 602 | 6110628 | 71.1 | 696.8 | 63.9 | 626 |
64 | 2-5/8 | 8 | 199.0 | 133.6 | 6110530 | 77.2 | 757 | 69.6 | 682 | 6110630 | 80.3 | 787.3 | 72.4 | 709 |
68 | 3-3/4 | 8-1/2 | 225.0 | 151.1 | 6110531 | 86.5 | 848 | 77.9 | 763 | 6110631 | 90.0 | 881.9 | 81.0 | 794 |
72 | 3 | 9 | 252.0 | 169.2 | 6110533 | 96.6 | 947 | 86.9 | 852 | 6110633 | 100.5 | 984.9 | 90.4 | 886 |
80 | 3-1/4 | 10 | 311.0 | 208.8 | 6110536 | 118.0 | 1156 | 106.1 | 1040 | 6110636 | 122.7 | 1202.2 | 110.4 | 1082 |
88 | 3-5/8 | 11 | 375.0 | 251.8 | 6110538 | 142.0 | 1392 | 127.3 | 1248 | 6110638 | 147.7 | 1447.7 | 132.4 | 1298 |
96 | 4 | 12 | 447.0 | 300.1 | 6110540 | 167.8 | 1644 | 150.6 | 1476 | 6110640 | 174.5 | 1709.8 | 156.6 | 1535 |
104 | 4-1/4 | 13 | 526.0 | 353.1 | 6110542 | 194.7 | 1908 | 175.1 | 1716 | 6110642 | 202.5 | 1984.3 | 182.1 | 1785 |
112 | 4-5/8 | 14 | 605.0 | 406.2 | 6110545 | 225.3 | 2208 | 203.3 | 1992 | 6110645 | 234.3 | 2296.3 | 211.4 | 2072 |
120 | 5 | 15 | 698.0 | 468.6 | 6110548 | 257.1 | 2520 | 231.4 | 2268 | 6110648 | 267.4 | 2620.8 | 240.7 | 2359 |
128 | 5-1/4 | 16 | 795.0 | 533.7 | 6110549 | 290.2 | 2844 | 260.8 | 2556 | 6110649 | 301.8 | 2957.8 | 271.2 | 2658 |
136 | 5-5/8 | 17 | 895.0 | 600.9 | 6110551 | 325.7 | 3192 | 292.7 | 2868 | 6110651 | 338.7 | 3319.7 | 304.4 | 2983 |
144 | 6 | 18 | 1010.0 | 678.1 | 6110552 | 363.7 | 3564 | 326.9 | 3204 | 6110652 | 378.2 | 3706.6 | 340.0 | 3332 |
152 | 6-1/4 | 19 | 1130.0 | 758.6 | 6110554 | 402.9 | 3948 | 362.4 | 3552 | 6110654 | 419.0 | 4105.9 | 376.9 | 3694 |
160 | 6-5/8 | 20 | 1250.0 | 839.2 | 6110555 | 444.5 | 4356 | 400.4 | 3924 | 6110655 | 462.3 | 4530.2 | 416.4 | 4081 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
