Construction:
Multi-Layer
Features:
Excellent abrasion resistance
Excellent chemical resistance
Excellent UV resistance
Excellent Tension fatigue
Bespoke diameter and length is available
Applications: Station keeping
This special rope mainly used for offshore industry like platform station-keeping,the rope usually produced with multi-layer technology,including external jacket,filtration and inner core.The rope design and produce must be based on specific working condition.
Item Number | Size (mm) | Size(inch) | Circ.(inch) | Breaking Load (kg) | Breaking Load(lb) |
| 6431502 | 118 | 4-5/8 | 14-1/2 | 400000 | 880000 |
| 6431532 | 132 | 5-1/4 | 16-3/8 | 500000 | 1100000 |
| 6431562 | 150 | 5-7/8 | 18-1/2 | 630000 | 1380000 |
| 6431582 | 160 | 6-1/4 | 19-7/8 | 700000 | 1560000 |
| 6431602 | 170 | 6-3/4 | 21 | 800000 | 1760000 |
| 6431622 | 180 | 7-1/8 | 22-3/8 | 900000 | 1980000 |
| 6431632 | 190 | 7-1/2 | 23-1/2 | 1000000 | 2200000 |
| 6431642 | 200 | 7-7/8 | 24-3/4 | 1100000 | 2470000 |
| 6431652 | 212 | 8-3/8 | 26-1/4 | 1250000 | 2760000 |
| 6431662 | 224 | 8-7/8 | 27-3/4 | 1390000 | 3070000 |
| 6431672 | 236 | 9-3/8 | 29-1/4 | 1600000 | 3500000 |
| 6431682 | 250 | 10 | 31 | 1800000 | 3970000 |
| 6431692 | 265 | 10-1/2 | 32-3/4 | 2000000 | 4400000 |
| 6431702 | 280 | 11 | 34-5/8 | 2140000 | 4700000 |
This special rope mainly used for offshore industry like platform station-keeping,
This special rope mainly used for offshore industry like platform station-keeping,
This special rope mainly used for offshore industry like platform station-keeping,

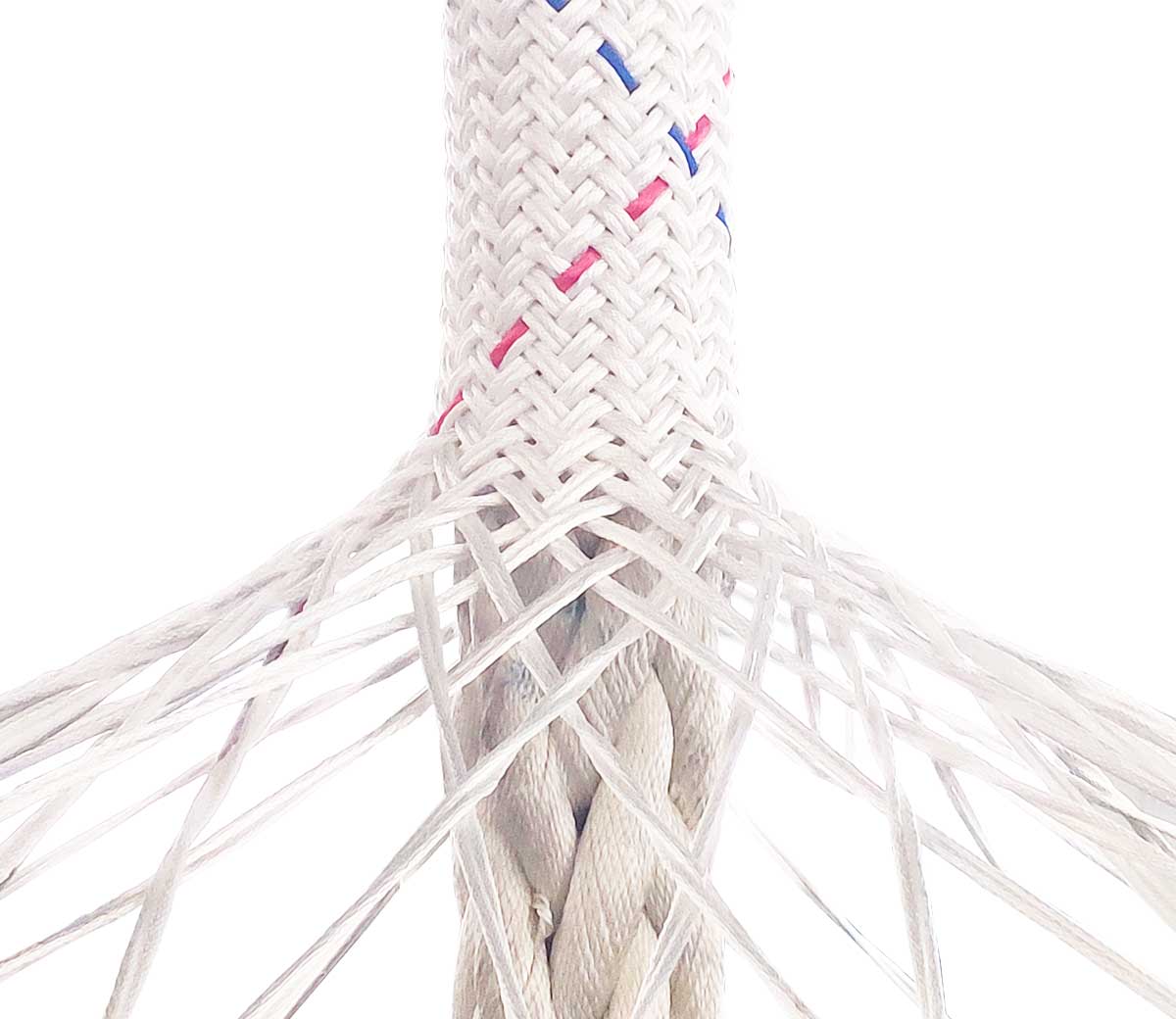

Made of polyamid fiber,inner core with out jacket make the rope has good shock-absorption and abrasion resistance.
LABACUS Multi-Layer Rope （Polyester Core）
