UHMWPE &High Tenacity Polyester

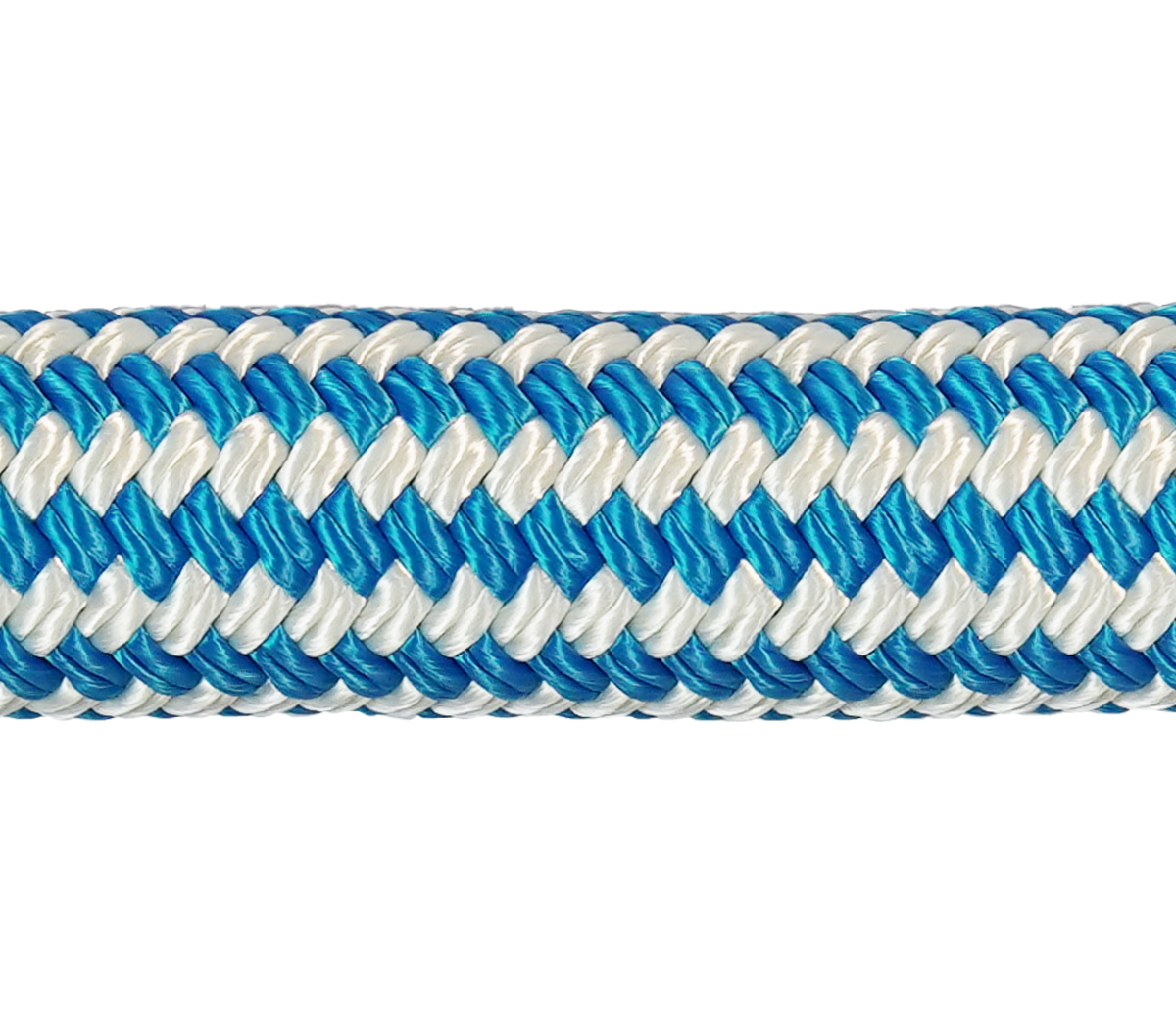

UHMWPE 12-strand Load-bearing Core & Polyester Braided Jacket
Features:
Specific Gravity: 0.97~1.10
Melting Point: 145℃/260℃
Breaking Elongation: 5%
Abrasion Resistance: Very Good
Chemical Resistance: Very Good
UV Resistance: Very Good
Water Absorption: 0%
Wet-dry Strength Ratio: Dry ≈ Wet
Applications:
Mooring Lines
Towing Lines
Lifting Slings
Winch Lines
Messenger Lines
Oceanographic Cables
Fishing Farming
Wind Farm Lines
Offshore Applications
This structure is non - rotative and torque free construction, the rope will not kink, round and firm structure makes rope grip well. Also braided Jacket enhance rope with excellent wear resistance and increase the Structure: UHMWPE 12-strand Load-bearing Core & Polyester Braided Jacketservice life of the rope.
| Code | Dia | Circ. | Weight | Unspliced MBL | LDBF, Spliced MBL | ||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | |
| 6113112 | 20 | 13/16 | 2-1/2 | 28.5 | 19.1 | 30.5 | 299 | 27.5 | 269 |
| 6113113 | 22 | 7/8 | 2-3/4 | 34.4 | 23.1 | 38.3 | 375 | 34.5 | 338 |
| 6113114 | 24 | 1 | 3 | 40.4 | 27.1 | 45.1 | 442 | 40.6 | 398 |
| 6113115 | 26 | 1-1/16 | 3-1/4 | 47.5 | 31.9 | 52.9 | 518 | 47.6 | 467 |
| 6113116 | 28 | 1-1/8 | 3-1/2 | 54.7 | 36.7 | 61.6 | 604 | 55.4 | 543 |
| 6113117 | 30 | 1-1/4 | 3-3/4 | 62.9 | 42.2 | 71.5 | 701 | 64.4 | 631 |
| 6113118 | 32 | 1-5/16 | 4 | 71.3 | 47.9 | 82.6 | 809 | 74.3 | 729 |
| 6113119 | 34 | 1-11/32 | 4-1/4 | 80.8 | 54.2 | 92.2 | 904 | 83.0 | 813 |
| 6113120 | 36 | 1-7/16 | 4-1/2 | 91.5 | 61.4 | 102.4 | 1004 | 92.2 | 903 |
| 6113121 | 38 | 1-1/2 | 4-3/4 | 101.1 | 67.9 | 116.8 | 1145 | 105.1 | 1030 |
| 6113122 | 40 | 1-5/8 | 5 | 111.7 | 75.0 | 127.9 | 1253 | 115.1 | 1128 |
| 6113123 | 44 | 1-3/4 | 5-1/2 | 136.6 | 91.7 | 154.9 | 1518 | 139.4 | 1366 |
| 6113125 | 48 | 2 | 6 | 161.6 | 108.5 | 180.7 | 1771 | 162.6 | 1594 |
| 6113126 | 52 | 2-1/8 | 6-1/2 | 190.1 | 127.6 | 215.5 | 2112 | 194.0 | 1901 |
| 6113127 | 56 | 2-1/4 | 7 | 219.8 | 147.6 | 245.9 | 2410 | 221.3 | 2169 |
| 6113128 | 60 | 2-1/2 | 7-1/2 | 251.9 | 169.1 | 282.8 | 2771 | 254.5 | 2494 |
| 6113130 | 64 | 2-5/8 | 8 | 285.1 | 191.4 | 323.3 | 3168 | 291.0 | 2852 |
| 6113131 | 68 | 2-3/4 | 8-1/2 | 323.2 | 217.0 | 366.0 | 3587 | 329.4 | 3228 |
| 6113133 | 72 | 3 | 9 | 364.8 | 244.9 | 407.4 | 3993 | 366.7 | 3593 |
| 6113134 | 76 | 3-1/8 | 9-1/2 | 403.9 | 271.2 | 451.2 | 4422 | 406.1 | 3980 |
| 6113136 | 80 | 3-1/4 | 10 | 445.5 | 299.1 | 506.2 | 4961 | 455.6 | 4465 |
| 6113138 | 88 | 3-5/8 | 11 | 534.6 | 358.9 | 600.5 | 5885 | 540.5 | 5296 |
| 6113140 | 96 | 4 | 12 | 629.6 | 422.7 | 704.9 | 6908 | 634.4 | 6217 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
