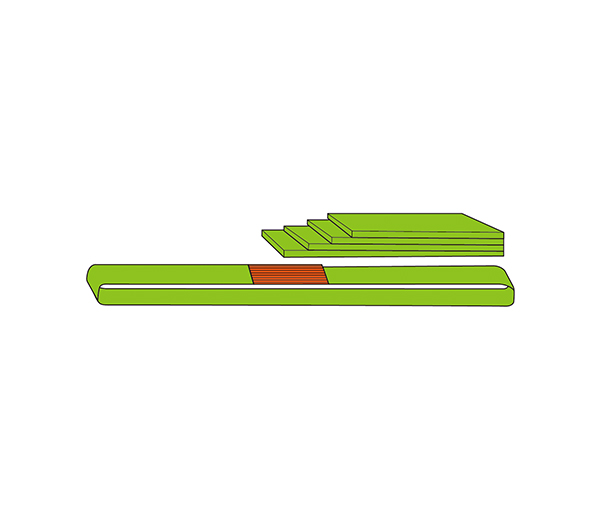

Construction:
Single layer
Double layers
4 layers
Safety Factor:
5:1, 7:1, 8:1
Features/Benefits:
Lightweight, durable, strong
Flexible, easy to handle
Adjusts to load contours
Holds with a secure grip
Will not damage most load surfaces
Minimizes load shock and jarring
Exceptional resistance to rot or mildew
Not normally affected by grease or oil
Application:
Lashing, Towing and Lifting Overhead
Most web sling types are available in thicknesses from 1 to 4 plys

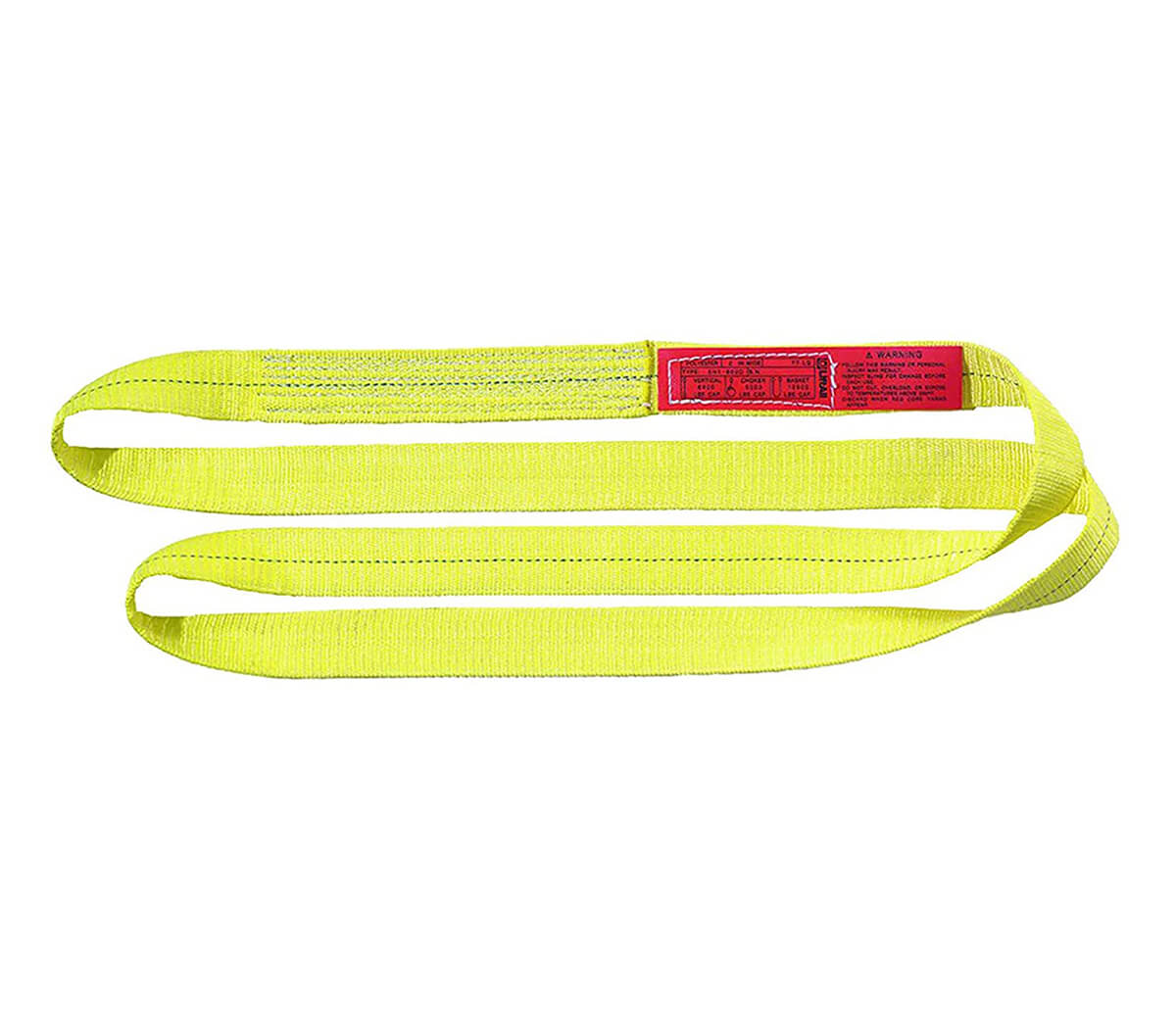

Webbing sling is the most popular type of slings, its stretchy characteristics help minimise shock loading problems. With the advantages of flexible, lightweight and wide bearing surface, it helps protect the lifting load.
They are strong enough to support heavy loads and are versatile enough to be used in several different applications and industries.

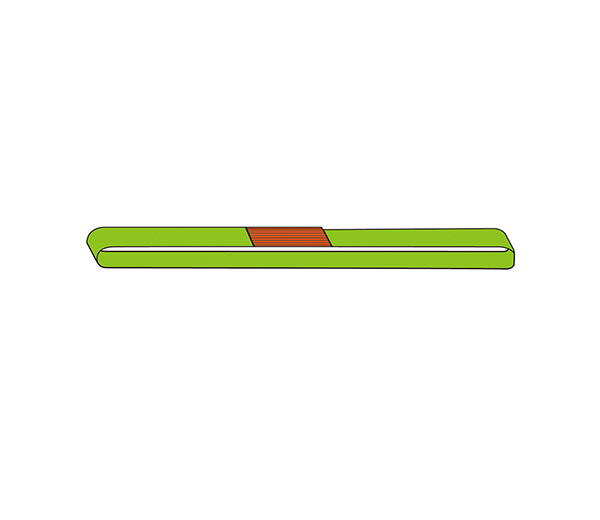

Single layer
Safety factor:7:1
| Item Number | S.W.L(T) | Width (mm) | Working Load Limits | ||||||||
| Vertical Hitch | Chocker Hitch | Basket Hitch | Two Leg Sling | Three and Four Leg Sling | |||||||
| Parallel | β=0°-45° | β=45°-60° | β=0°-45° | β=45°-60° | β=0°-45° | β=45°-60° | |||||
 |  |  |  |  |  |  |  |  | |||
| M=1.0 | M=0.8 | M=2.0 | M=1.4 | M=1.0 | M=1.4 | M=1.0 | M=2.1 | M=1.5 | |||
| 5221011 | 1 | 38 | 1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 1.4 | 1.0 | 2.1 | 1.5 |
| 5221021 | 2 | 76 | 2.0 | 1.6 | 4.0 | 2.8 | 2.0 | 2.8 | 2.0 | 4.2 | 3.0 |
| 5221031 | 3 | 110 | 3.0 | 2.4 | 6.0 | 4.2 | 3.0 | 4.2 | 3.0 | 6.3 | 4.5 |
| 5221041 | 4 | 150 | 4.0 | 3.2 | 8.0 | 5.6 | 4.0 | 5.6 | 4.0 | 8.4 | 6.0 |
| 5221051 | 5 | 200 | 5.0 | 4.0 | 10.0 | 7.0 | 5.0 | 7.0 | 5.0 | 10.5 | 7.5 |
| 5221061 | 6 | 240 | 6.0 | 4.8 | 12.0 | 8.4 | 6.0 | 8.4 | 6.0 | 12.6 | 9.0 |
| 5221071 | 8 | 305 | 8.0 | 6.4 | 16.0 | 11.2 | 8.0 | 11.2 | 8.0 | 16.8 | 12.0 |
Double layers
Safety factor:7:1
| Item Number | S.W.L(T) | Width (mm) | Working Load Limits | ||||||||
| Vertical Hitch | Chocker Hitch | Basket Hitch | Two Leg Sling | Three and Four Leg Sling | |||||||
| Parallel | β=0°-45° | β=45°-60° | β=0°-45° | β=45°-60° | β=0°-45° | β=45°-60° | |||||
| | | | | | | | | | |||
| M=1.0 | M=0.8 | M=2.0 | M=1.4 | M=1.0 | M=1.4 | M=1.0 | M=2.1 | M=1.5 | |||
| 5221012 | 1 | 30 | 1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 1.4 | 1.0 | 2.1 | 1.5 |
| 5221022 | 2 | 60 | 2.0 | 1.6 | 4.0 | 2.8 | 2.0 | 2.8 | 2.0 | 4.2 | 3.0 |
| 5221032 | 3 | 90 | 3.0 | 2.4 | 6.0 | 4.2 | 3.0 | 4.2 | 3.0 | 6.3 | 4.5 |
| 5221042 | 4 | 120 | 4.0 | 3.2 | 8.0 | 5.6 | 4.0 | 5.6 | 4.0 | 8.4 | 6.0 |
| 5221052 | 5 | 150 | 5.0 | 4.0 | 10.0 | 7.0 | 5.0 | 7.0 | 5.0 | 10.5 | 7.5 |
| 5221062 | 6 | 180 | 6.0 | 4.8 | 12.0 | 8.4 | 6.0 | 8.4 | 6.0 | 12.6 | 9.0 |
| 5221072 | 8 | 240 | 8.0 | 6.4 | 16.0 | 11.2 | 8.0 | 11.2 | 8.0 | 16.8 | 12.0 |
| 5221082 | 10 | 300 | 10.0 | 8.0 | 20.0 | 14.0 | 10.0 | 14.0 | 9.0 | 18.9 | 13.5 |
4 layers
Safety factor:7:1
| Item Number | S.W.L(T) | Width (mm) | Working Load Limits | ||||||||
| Vertical Hitch | Chocker Hitch | Basket Hitch | Two Leg Sling | Three and Four Leg Sling | |||||||
| Parallel | β=0°-45° | β=45°-60° | β=0°-45° | β=45°-60° | β=0°-45° | β=45°-60° | |||||
| | | | | | | | | | |||
| M=1.0 | M=0.8 | M=2.0 | M=1.4 | M=1.0 | M=1.4 | M=1.0 | M=2.1 | M=1.5 | |||
| 5221013 | 1 | 30 | 1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 1.4 | 1.0 | 2.1 | 1.5 |
| 5221023 | 2 | 60 | 2.0 | 1.6 | 4.0 | 2.8 | 2.0 | 2.8 | 2.0 | 4.2 | 3.0 |
| 5221033 | 3 | 90 | 3.0 | 2.4 | 6.0 | 4.2 | 3.0 | 4.2 | 3.0 | 6.3 | 4.5 |
| 5221043 | 4 | 120 | 4.0 | 3.2 | 8.0 | 5.6 | 4.0 | 5.6 | 4.0 | 8.4 | 6.0 |
| 5221053 | 5 | 150 | 5.0 | 4.0 | 10.0 | 7.0 | 5.0 | 7.0 | 5.0 | 10.5 | 7.5 |
| 5221063 | 6 | 180 | 6.0 | 4.8 | 12.0 | 8.4 | 6.0 | 8.4 | 6.0 | 12.6 | 9.0 |
| 5221073 | 8 | 240 | 8.0 | 6.4 | 16.0 | 11.2 | 8.0 | 11.2 | 8.0 | 16.8 | 12.0 |
| 5221083 | 10 | 300 | 10.0 | 8.0 | 20.0 | 14.0 | 10.0 | 14.0 | 9.0 | 18.9 | 13.5 |
Webbing sling is the most popular sling, its stretchy characteristic helps minimize shock loading problems. With the advantages of flexible, lightweight and wide bearing surface, it helps protect the lifting load. They are strong enough to support heavy loads and are versatile enough to be used in different applications and industries.
Webbing sling is the most popular type of slings, its stretchy characteristics help minimise shock loading problems. With the advantages of flexible, lightweight and wide bearing surface, it helps protect the lifting load. They are strong enough to support heavy loads and are versatile enough to be used in several different applications and industries.
