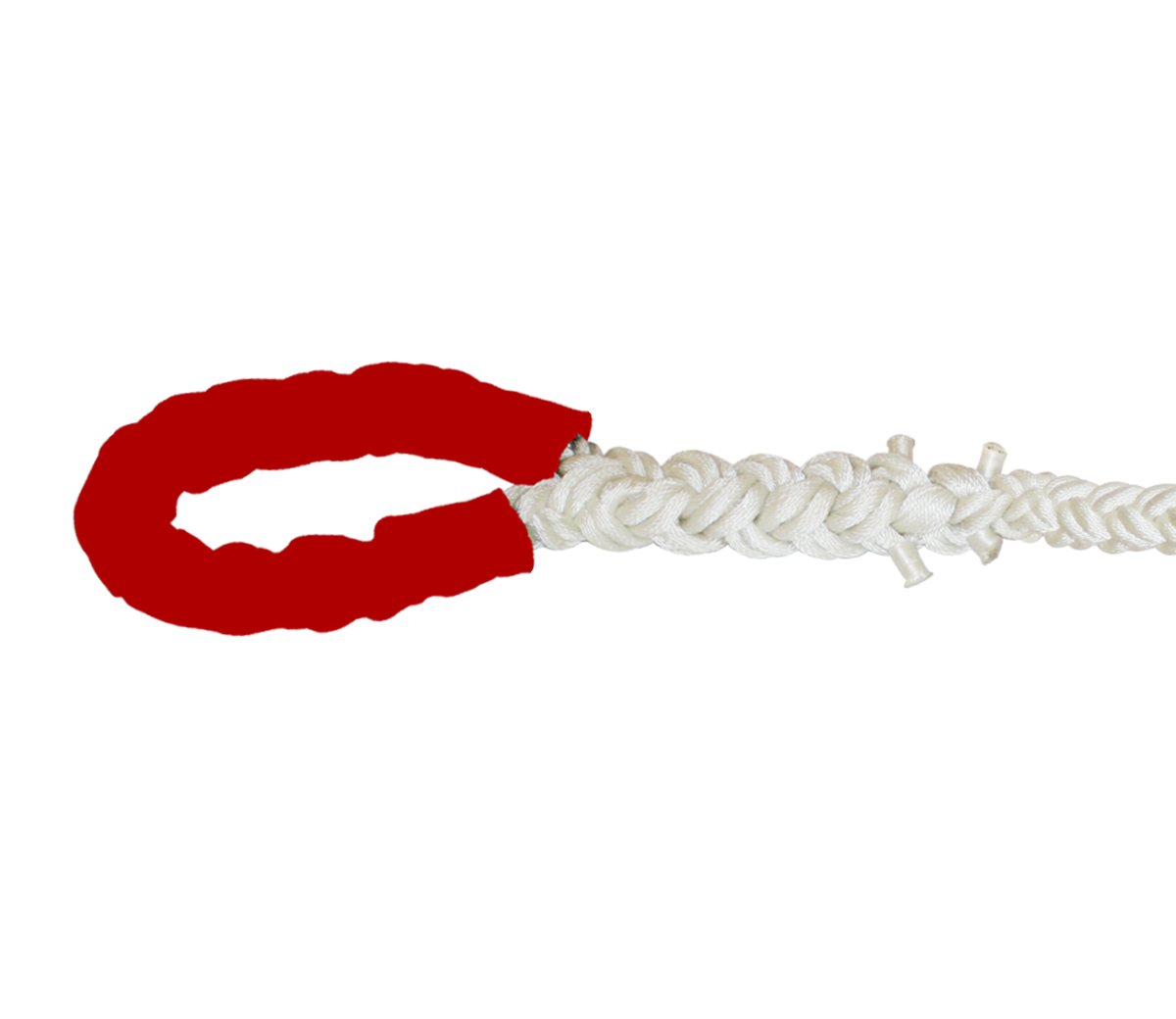

High Tenacity Polyester
Structure: 8/12-strand
Features:
Easy to splice
UV resistance
Rot-proof
High abrasion resistance
Applications:
General Working Lines
Mooring Tails
Mooring tails provide good elasticity and sudden shock absorption when windy weather or big wave comes, it's a necessary protection for primary mooring line .
| Dia | Circ. | Weight | Eye Length | Total Length | Code | 8-strand | Code | 12-strand | ||||||||||
| Unspliced MBL | LDBF, Spliced MBL | Unspliced MBL | LDBF, Spliced MBL | |||||||||||||||
| mm | inch | inch | kg/100m | lbs/100ft | inch | mm | ft | m | ton | kN | ton | kN | ton | kN | ton | kN | ||
| 48 | 2 | 6 | 175.0 | 117.4 | 70 | 1800 | 36 | 11 | 6345125 | 41.0 | 402 | 36.9 | 362 | 6346125 | 43.5 | 426 | 39.1 | 383 |
| 52 | 2-1/8 | 6-1/2 | 205.0 | 137.5 | 70 | 1800 | 36 | 11 | 6345126 | 49.0 | 480 | 44.1 | 432 | 6346126 | 52.0 | 510 | 46.8 | 459 |
| 56 | 2-1/4 | 7 | 238.0 | 159.6 | 70 | 1800 | 36 | 11 | 6345127 | 55.1 | 540 | 49.6 | 486 | 6346127 | 58.2 | 570 | 52.3 | 513 |
| 60 | 2-1/2 | 7-1/2 | 273.0 | 183.1 | 70 | 1800 | 36 | 11 | 6345128 | 61.2 | 600 | 55.1 | 540 | 6346128 | 64.9 | 636 | 58.4 | 572 |
| 64 | 2-5/8 | 8 | 311.0 | 208.6 | 70 | 1800 | 36 | 11 | 6345130 | 68.6 | 672 | 61.7 | 605 | 6346130 | 73.5 | 720 | 66.1 | 648 |
| 72 | 3 | 9 | 393.0 | 263.6 | 70 | 1800 | 36 | 11 | 6345134 | 86.9 | 852 | 78.2 | 767 | 6346134 | 91.8 | 900 | 82.7 | 810 |
| 80 | 3-1/4 | 10 | 486.0 | 326.0 | 70 | 1800 | 36 | 11 | 6345136 | 110.2 | 1080 | 99.2 | 972 | 6346136 | 116.3 | 1140 | 104.7 | 1026 |
| 88 | 3-5/8 | 11 | 588.0 | 394.4 | 70 | 1800 | 36 | 11 | 6345138 | 129.8 | 1272 | 116.8 | 1145 | 6346138 | 137.1 | 1344 | 123.4 | 1210 |
| 96 | 4 | 12 | 699.0 | 468.8 | 70 | 1800 | 36 | 11 | 6345140 | 153.1 | 1500 | 137.8 | 1350 | 6346140 | 161.6 | 1584 | 145.5 | 1426 |
| 48 | 2 | 6 | 175.0 | 117.4 | 70 | 1800 | 72 | 22 | 6345225 | 41.0 | 402 | 36.9 | 362 | 6346225 | 43.5 | 426 | 39.1 | 383 |
| 52 | 2-1/8 | 6-1/2 | 205.0 | 137.5 | 70 | 1800 | 72 | 22 | 6345226 | 49.0 | 480 | 44.1 | 432 | 6346226 | 52.0 | 510 | 46.8 | 459 |
| 56 | 2-1/4 | 7 | 238.0 | 159.6 | 70 | 1800 | 72 | 22 | 6345227 | 55.1 | 540 | 49.6 | 486 | 6346227 | 58.2 | 570 | 52.3 | 513 |
| 60 | 2-1/2 | 7-1/2 | 273.0 | 183.1 | 70 | 1800 | 72 | 22 | 6345228 | 61.2 | 600 | 55.1 | 540 | 6346228 | 64.9 | 636 | 58.4 | 572 |
| 64 | 2-5/8 | 8 | 311.0 | 208.6 | 70 | 1800 | 72 | 22 | 6345230 | 68.6 | 672 | 61.7 | 605 | 6346230 | 73.5 | 720 | 66.1 | 648 |
| 72 | 3 | 9 | 393.0 | 263.6 | 70 | 1800 | 72 | 22 | 6345234 | 86.9 | 852 | 78.2 | 767 | 6346234 | 91.8 | 900 | 82.7 | 810 |
| 80 | 3-1/4 | 10 | 486.0 | 326.0 | 70 | 1800 | 72 | 22 | 6345236 | 110.2 | 1080 | 99.2 | 972 | 6346236 | 116.3 | 1140 | 104.7 | 1026 |
| 88 | 3-5/8 | 11 | 588.0 | 394.4 | 70 | 1800 | 72 | 22 | 6345238 | 129.8 | 1272 | 116.8 | 1145 | 6346238 | 137.1 | 1344 | 123.4 | 1210 |
| 96 | 4 | 12 | 699.0 | 468.8 | 70 | 1800 | 72 | 22 | 6345240 | 153.1 | 1500 | 137.8 | 1350 | 6346240 | 161.6 | 1584 | 145.5 | 1426 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
