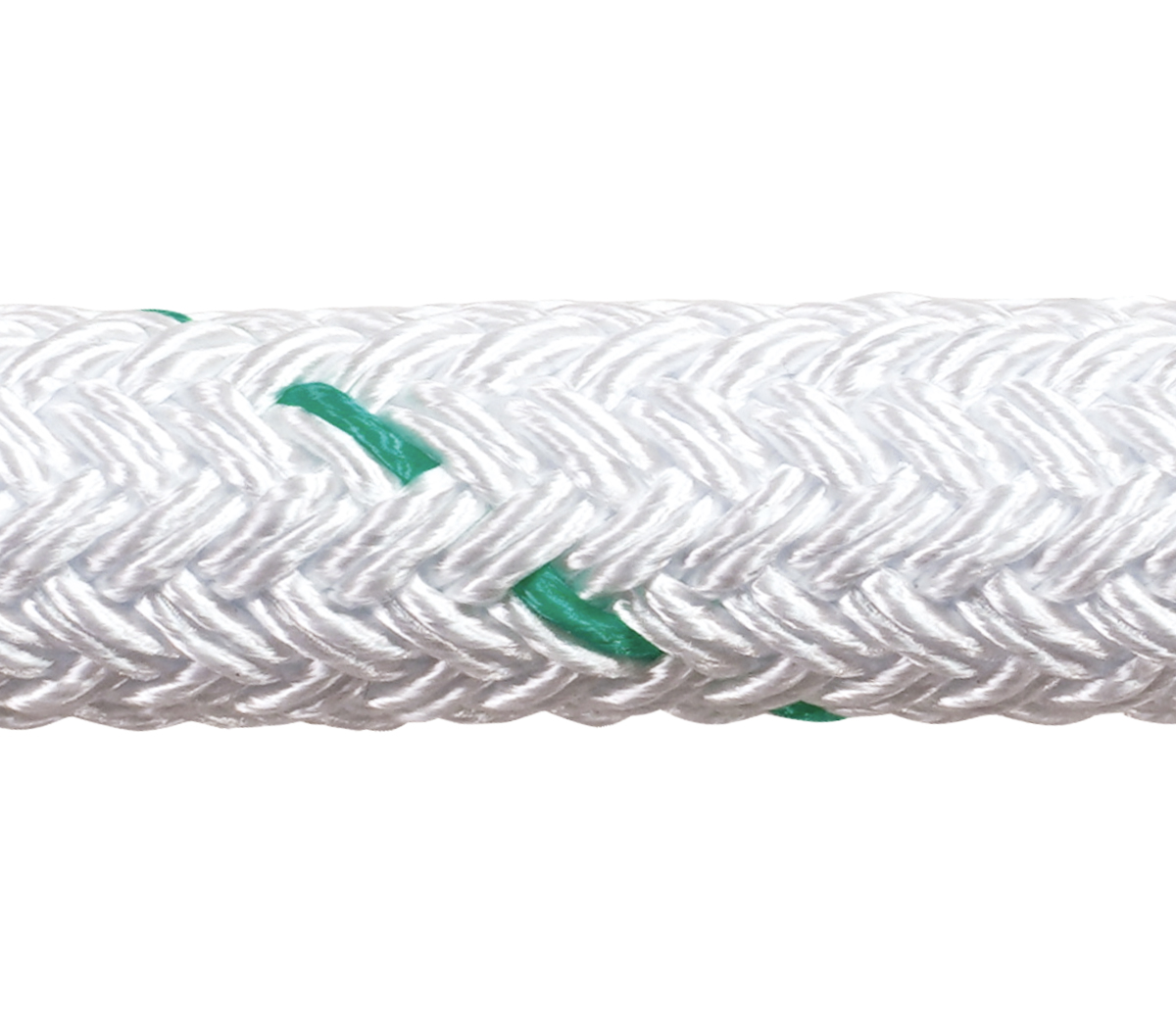

High Tenacity Polyamide
Double Braid
Features
Specific Gravity: 1.14
Melting Point: 215℃
Breaking Elongation: 30% ~ 35%
Abrasion Resistance: Very Good
Chemical Resistance: Very Good
UV Resistance: Very Good
Water Absorption: 4%
Wet-dry Strength Ratio: Dry > Wet
Applications
Anchor Lines
Dock Lines
Shock Lines
Mooring Lines
Towing Lines
Double braid rope is non - rotative and torque free construction, the rope will not kink, round and firm structure makes rope grip well. Also double braid construction is very flexible and enhance rope with high strength and excellent wear resistance.
| Code | Dia | Circ. | Weight | Unspliced MBL | LDBF, Spliced MBL | ||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | |
| 6103713 | 22 | 7/8 | 2-3/4 | 30.1 | 20.2 | 11.1 | 109 | 10.0 | 98 |
| 6103714 | 24 | 1 | 3 | 35.8 | 24.0 | 13.3 | 130 | 11.9 | 117 |
| 6103715 | 26 | 1-1/16 | 3-1/4 | 42.0 | 28.2 | 15.5 | 152 | 14.0 | 137 |
| 6103716 | 28 | 1-1/8 | 3-1/2 | 48.8 | 32.8 | 18.0 | 176 | 16.2 | 158 |
| 6103717 | 30 | 1-1/4 | 3-3/4 | 56.0 | 37.6 | 20.7 | 203 | 18.6 | 183 |
| 6103718 | 32 | 1-5/16 | 4 | 63.7 | 42.8 | 23.5 | 230 | 21.1 | 207 |
| 6103720 | 36 | 1-1/2 | 4-1/2 | 80.6 | 54.1 | 29.7 | 291 | 26.7 | 262 |
| 6103722 | 40 | 1-5/8 | 5 | 99.5 | 66.8 | 36.5 | 358 | 32.9 | 322 |
| 6103723 | 44 | 1-3/4 | 5-1/2 | 120.0 | 80.6 | 44.2 | 433 | 39.8 | 390 |
| 6103725 | 48 | 2 | 6 | 143.0 | 96.0 | 52.6 | 515 | 47.3 | 464 |
| 6103726 | 52 | 2-1/8 | 6-1/2 | 168.0 | 112.8 | 61.5 | 603 | 55.4 | 543 |
| 6103727 | 56 | 2-1/4 | 7 | 195.0 | 130.9 | 71.2 | 698 | 64.1 | 628 |
| 6103728 | 60 | 2-1/2 | 7-1/2 | 224.0 | 150.4 | 81.6 | 800 | 73.5 | 720 |
| 6103730 | 64 | 2-5/8 | 8 | 255.0 | 171.2 | 92.9 | 910 | 83.6 | 819 |
| 6103733 | 72 | 3 | 9 | 322.0 | 216.2 | 117.9 | 1155 | 106.1 | 1040 |
| 6103736 | 80 | 3-1/4 | 10 | 398.0 | 267.2 | 144.7 | 1418 | 130.2 | 1276 |
| 6103738 | 88 | 3-5/8 | 11 | 482.0 | 323.6 | 174.7 | 1712 | 157.2 | 1541 |
| 6103740 | 96 | 4 | 12 | 573.0 | 384.7 | 207.9 | 2037 | 187.1 | 1833 |
| 6103742 | 104 | 4-1/4 | 13 | 673.0 | 451.8 | 243.3 | 2384 | 218.9 | 2146 |
| 6103745 | 112 | 4-5/8 | 14 | 780.0 | 523.7 | 281.8 | 2762 | 253.7 | 2486 |
| 6103748 | 120 | 5 | 15 | 896.0 | 601.5 | 323.6 | 3171 | 291.2 | 2854 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
