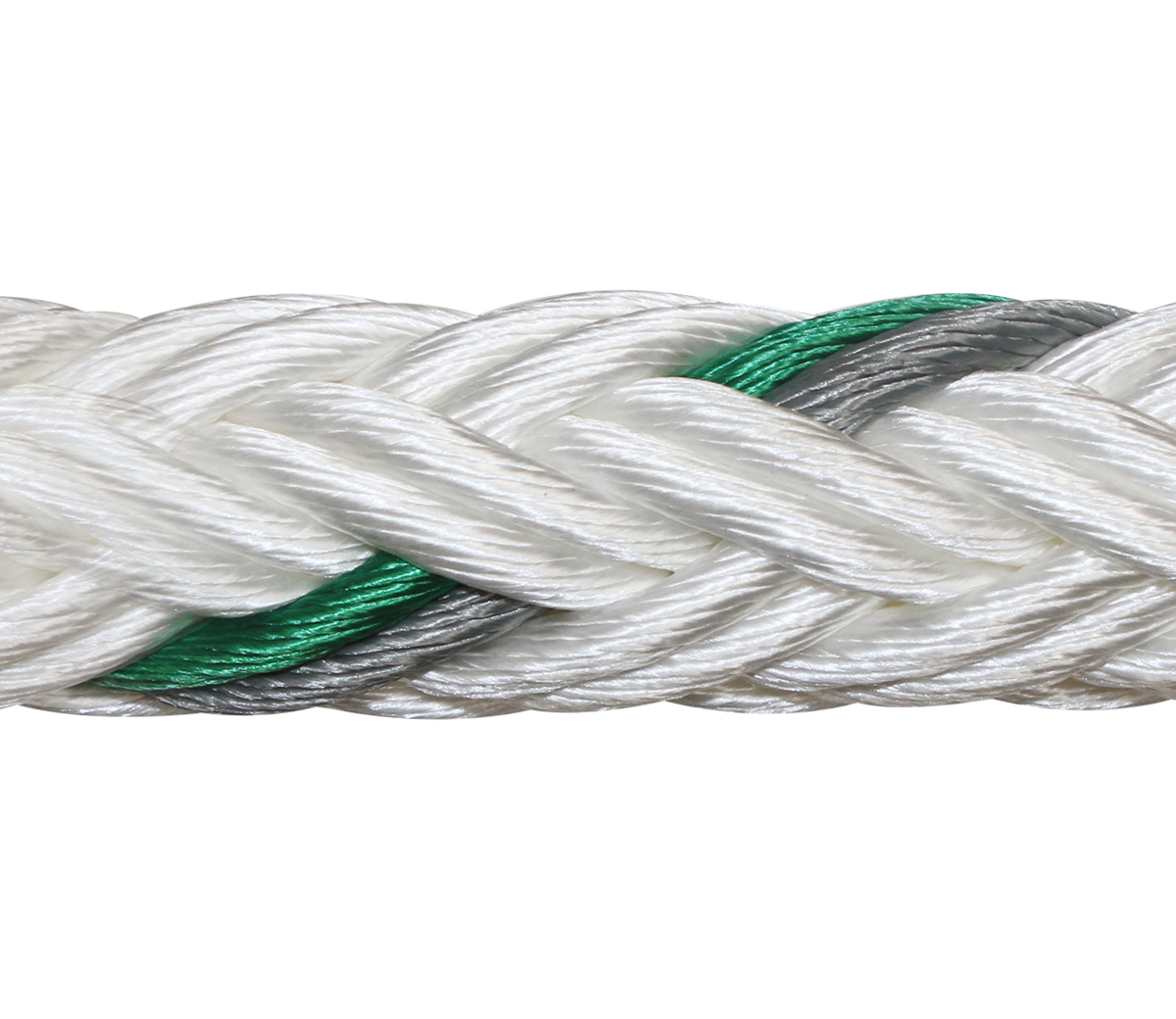

High Tenacity Polyamide
Structure: 24-strand
Applications:
Mooring Lines
Towing Lines
A 24 strands rope typically refers to a rope that is braided using 12 strands, with each strand potentially being a double braid. The 24 construction rope, with its additional strand layers, provides greater flexibility, making it easier to handle and more adaptable to various applications.With its additional strand layers, provides greater flexibility, making it easier to handle and more adaptable to various applications. With multiple strands, the construction rope distributes loads more evenly, reducing stress on individual strands and enhancing overall rope performance.This construction rope allows for smoother handling, reducing the risk of kinking or twisting during use.
| Code | Dia | Circ. | Weight | Unspliced MBL | LDBF, Spliced MBL | ||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | |
| 6103820 | 36 | 1-1/2 | 4-1/2 | 81.0 | 54.3 | 32.4 | 318 | 29.3 | 287 |
| 6103822 | 40 | 1-5/8 | 5 | 100.0 | 67.1 | 38.5 | 378 | 34.8 | 341 |
| 6103823 | 44 | 1-3/4 | 5-1/2 | 121.0 | 81.2 | 46.0 | 450 | 41.4 | 406 |
| 6103825 | 48 | 2 | 6 | 144.0 | 96.6 | 55.1 | 540 | 49.6 | 486 |
| 6103826 | 52 | 2-1/8 | 6-1/2 | 170.0 | 114.0 | 64.9 | 636 | 58.4 | 572 |
| 6103827 | 56 | 2-1/4 | 7 | 197.0 | 132.1 | 73.4 | 720 | 66.1 | 648 |
| 6103828 | 60 | 2-1/2 | 7-1/2 | 226.0 | 151.6 | 82.1 | 804 | 73.8 | 724 |
| 6103830 | 64 | 2-5/8 | 8 | 257.0 | 172.4 | 91.8 | 900 | 82.7 | 810 |
| 6103833 | 72 | 3 | 9 | 325.0 | 218.0 | 116.3 | 1140 | 104.6 | 1026 |
| 6103836 | 80 | 3-1/4 | 10 | 401.0 | 269.0 | 144.5 | 1416 | 130.1 | 1274 |
| 6103838 | 88 | 3-5/8 | 11 | 486.0 | 326.0 | 171.5 | 1680 | 154.3 | 1512 |
| 6103840 | 96 | 4 | 12 | 578.0 | 387.7 | 208.2 | 2040 | 187.3 | 1836 |
| 6103842 | 104 | 4-1/4 | 13 | 678.0 | 454.8 | 232.7 | 2280 | 209.4 | 2052 |
| 6103845 | 112 | 4-5/8 | 14 | 787.0 | 527.9 | 274.3 | 2688 | 246.8 | 2419 |
| 6103848 | 120 | 5 | 15 | 903.0 | 605.7 | 306.1 | 3000 | 275.5 | 2700 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4).
Size
DURA-PA™ 24
123.56KB
