Ultra High Molecular Weight Polyethylene
Structure: 12-strand
Features:
Easy and quick to connect
Variable calculated breaking force
Connection to a wide range of synthetic ropes
Stronger than other steel-made shackles in weight Cost savings, Low weight, High performance
Smoother line movement and easier handling
No damage to mooring rope and ship

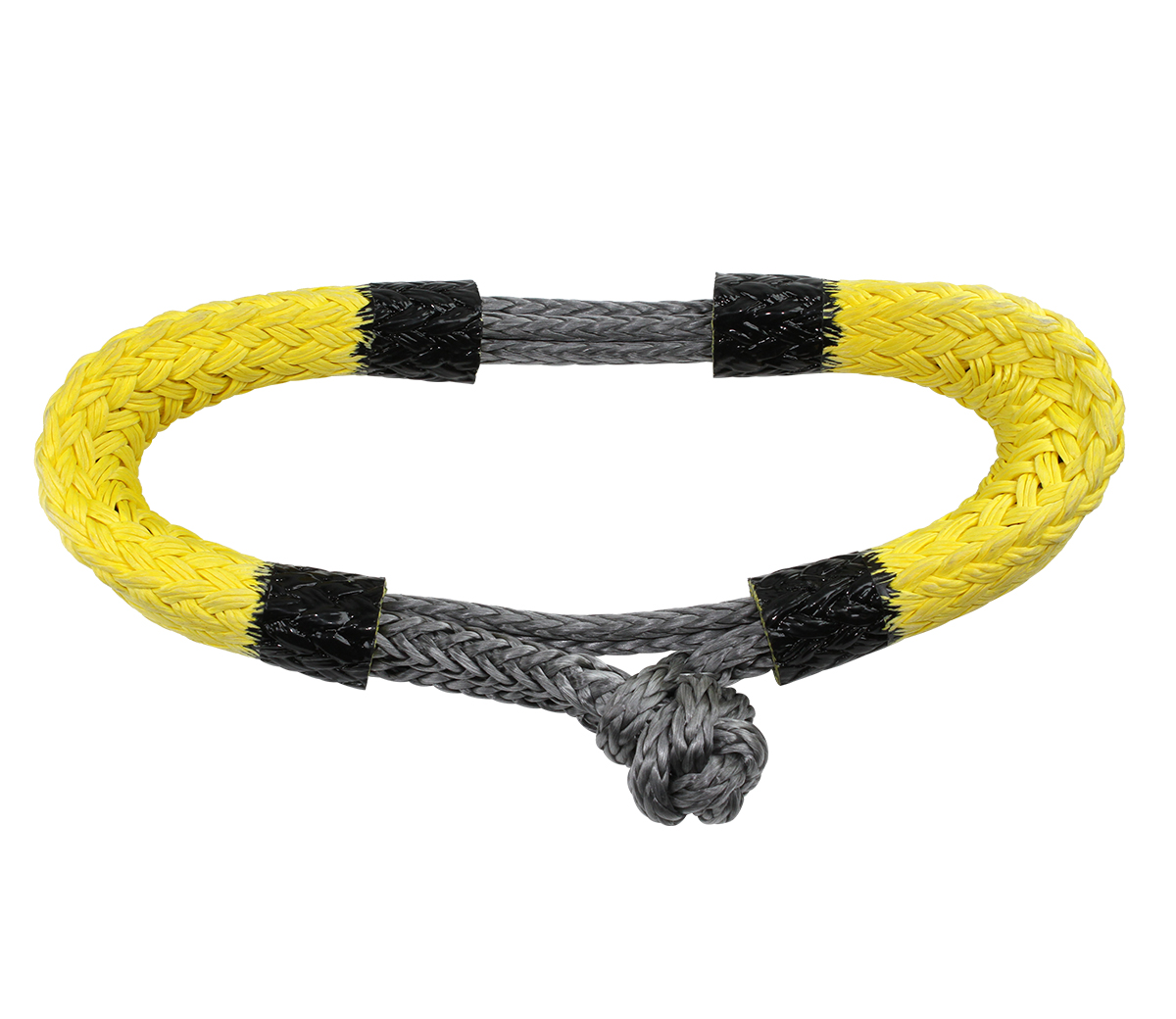

HOPEX™ soft shackle offers superior strength, durability, and versatility. Made from high-modulus HMPE rope, it is lightweight, rust-resistant, and floats in water, which making them to be an ideal to instead of steel shackle.
| Code | Dia | Minimum Breaking Strength | Work Load Limit | |||
| mm | inch | ton | kN | ton | kN | |
| 6420109 | 14 | 9/16 | 30 | 294 | 6 | 59 |
| 6420111 | 18 | 3/4 | 50 | 490 | 10 | 98 |
| 6420116 | 28 | 1-1/8 | 100 | 980 | 20 | 196 |
| 6420119 | 34 | 1-11/32 | 150 | 1470 | 30 | 294 |
| 6420122 | 40 | 1-5/8 | 200 | 1960 | 40 | 392 |
| 6420126 | 52 | 2-1/8 | 300 | 2940 | 60 | 588 |
| 6420131 | 68 | 2-3/4 | 500 | 4900 | 100 | 980 |
| 6420141 | 100 | 4-1/8 | 1000 | 9800 | 200 | 1960 |
| 6420148 | 120 | 5 | 1500 | 14700 | 300 | 2940 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
HOPEX™ soft shackle offers superior strength, durability, and versatility. Made from high-modulus HMPE rope, it is lightweight, rust-resistant, and floats in water, which making them to be an ideal to instead of steel shackle.
