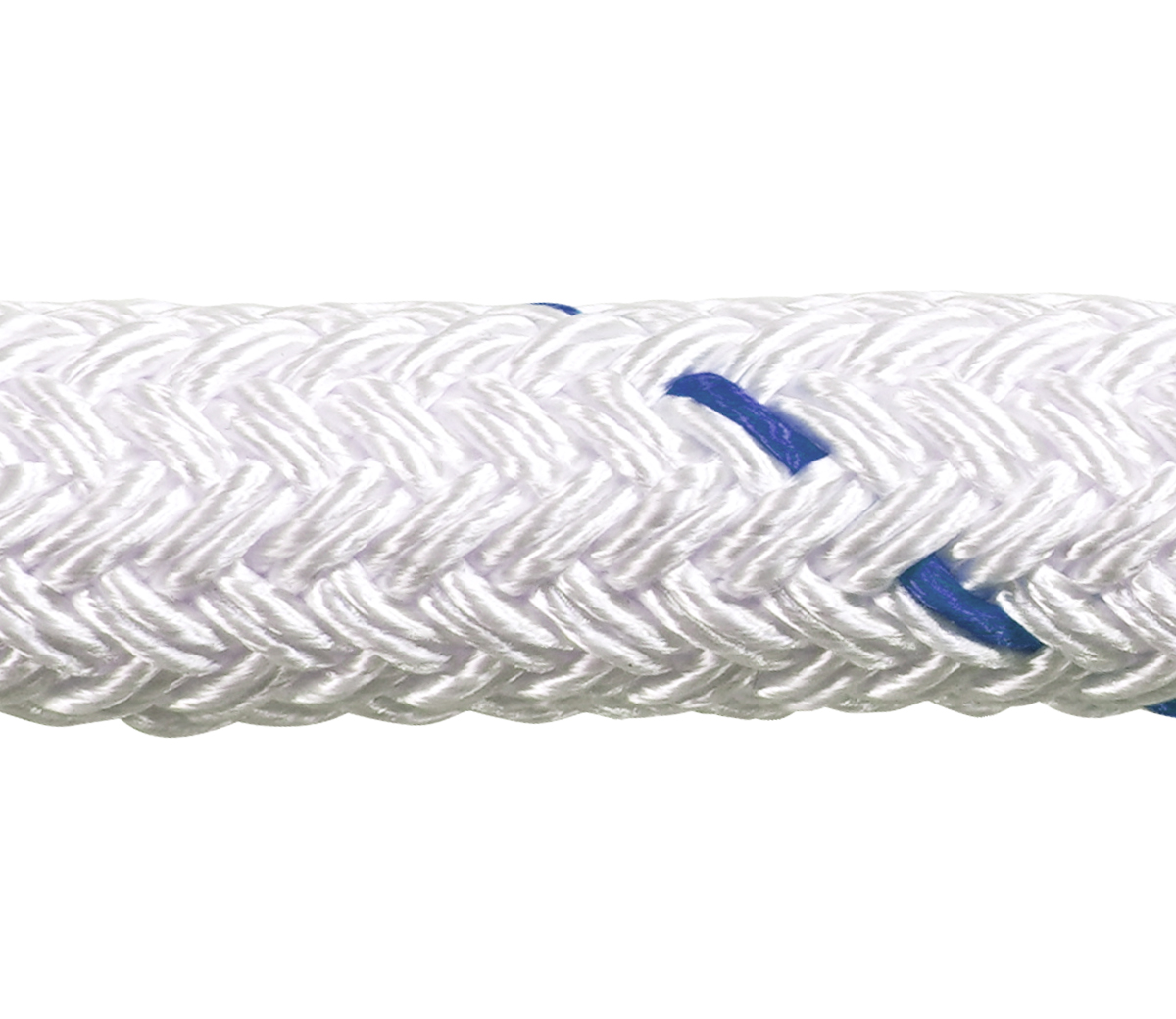

High Tenacity Polyester
Structure: Double Braid
Features:
Specific Gravity: 1.38~1.44
Melting Point: 250~260℃
Breaking Elongation: 20% ~ 30%
Abrasion Resistance: Very Good
Chemical Resistance: Very Good
UV Resistance: Very Good
Water Absorption: 0.4%
Wet-dry Strength Ratio: Dry ≈ Wet
Applications:
Anchor Lines
Dock Lines
Shock Lines
Mooring Lines
Towing Lines
Winch Lines
Lifting Slings
Leader among all popular fibers for weatherability characteristics , polyester exhibits excellent abrasion resistance and strength . Good resistance to UV light and most common chemicals . This rope offers excellent gripping properties and a torque - free construction .
| Code | Dia | Circ. | Weight | Unspliced MBL | LDBF, Spliced MBL | ||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | |
| 6104713 | 22 | 7/8 | 2-3/4 | 38.6 | 25.9 | 10.4 | 102 | 9.4 | 92 |
| 6104714 | 24 | 1 | 3 | 45.9 | 30.8 | 12.3 | 121 | 11.1 | 109 |
| 6104715 | 26 | 1-1/16 | 3-1/4 | 53.9 | 36.2 | 14.4 | 141 | 12.9 | 127 |
| 6104716 | 28 | 1-1/8 | 3-1/2 | 62.5 | 42.0 | 16.6 | 163 | 15.0 | 147 |
| 6104717 | 30 | 1-1/4 | 3-3/4 | 71.7 | 48.1 | 19.0 | 186 | 17.1 | 167 |
| 6104718 | 32 | 1-5/16 | 4 | 81.6 | 54.8 | 21.4 | 210 | 19.3 | 189 |
| 6104720 | 36 | 1-1/2 | 4-1/2 | 103.0 | 69.2 | 26.9 | 264 | 24.2 | 238 |
| 6104722 | 40 | 1-5/8 | 5 | 128.0 | 85.9 | 33.1 | 324 | 29.8 | 292 |
| 6104723 | 44 | 1-3/4 | 5-1/2 | 154.0 | 103.4 | 39.7 | 389 | 35.7 | 350 |
| 6104725 | 48 | 2 | 6 | 184.0 | 123.5 | 46.9 | 460 | 42.2 | 414 |
| 6104726 | 52 | 2-1/8 | 6-1/2 | 216.0 | 145.0 | 54.8 | 537 | 49.3 | 483 |
| 6104727 | 56 | 2-1/4 | 7 | 250.0 | 167.8 | 63.1 | 618 | 56.8 | 556 |
| 6104728 | 60 | 2-1/2 | 7-1/2 | 287.0 | 192.7 | 72.1 | 707 | 64.9 | 636 |
| 6104730 | 64 | 2-5/8 | 8 | 326.0 | 218.9 | 81.6 | 800 | 73.5 | 720 |
| 6104733 | 72 | 3 | 9 | 413.0 | 277.3 | 102.0 | 1000 | 91.8 | 900 |
| 6104736 | 80 | 3-1/4 | 10 | 510.0 | 342.4 | 125.5 | 1230 | 113.0 | 1107 |
| 6104738 | 88 | 3-5/8 | 11 | 617.0 | 414.2 | 151.0 | 1480 | 135.9 | 1332 |
| 6104740 | 96 | 4 | 12 | 735.0 | 493.5 | 178.6 | 1750 | 160.7 | 1575 |
| 6104742 | 104 | 4-1/4 | 13 | 862.0 | 578.7 | 208.2 | 2040 | 187.3 | 1836 |
| 6104745 | 112 | 4-5/8 | 14 | 1000.0 | 671.4 | 239.8 | 2350 | 215.8 | 2115 |
| 6104748 | 120 | 5 | 15 | 1150.0 | 772.1 | 274.5 | 2690 | 247.0 | 2421 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
