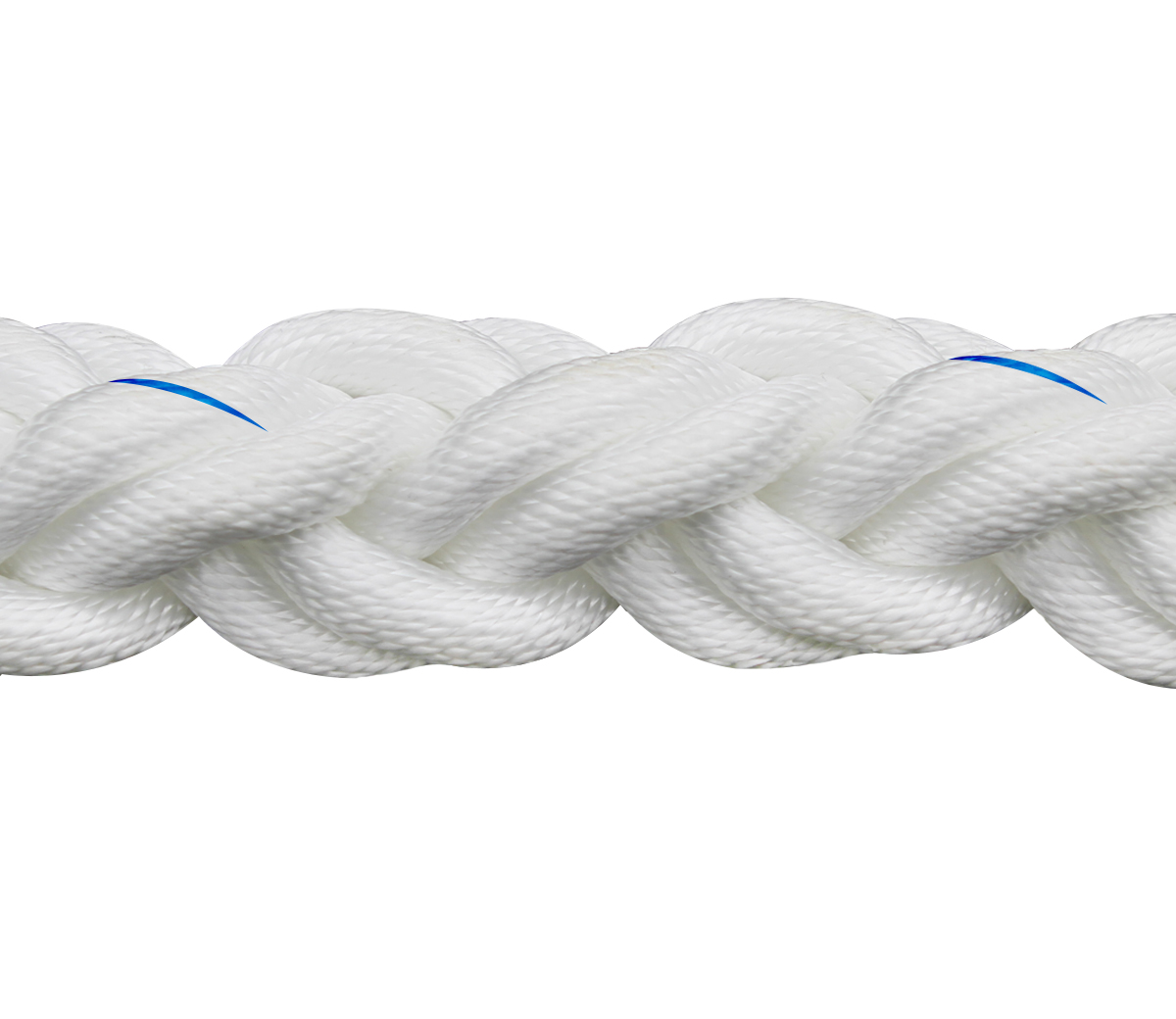

High Tenacity Polyester
Structure: 8-strand
Features:
Specific Gravity: 1.38~1.44
Melting Point: 250~260℃
Breaking Elongation: 12%~21%
Abrasion Resistance: Very Good
Chemical Resistance: Very Good
UV Resistance: Very Good
Water Absorption: 0.4%
Wet-dry Strength Ratio: Dry ≈ Wet
Applications:
Anchor Lines
Dock Lines
Shock Lines
Mooring Lines
Towing Lines
Winch Lines
High-tenacity polyester fiber makes rope have very good break strength and finest durability, it's widely used in mooring industry.
| Dia | Circ. | Weight | Code | 8-strand | Code | 12-strand | ||||||||
| Unspliced MBL | LDBF, Spliced MBL | Unspliced MBL | LDBF, Spliced MBL | |||||||||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | ton | kN | ton | kN | ||
| 24 | 1 | 3 | 43.7 | 29.3 | 6104514 | 11.0 | 108 | 9.9 | 97 | 6104614 | 11.6 | 114 | 10.5 | 103 |
| 28 | 1-1/8 | 3-1/2 | 59.5 | 39.9 | 6104516 | 14.4 | 142 | 13.0 | 127 | 6104616 | 15.3 | 150 | 13.8 | 135 |
| 30 | 1-1/4 | 3-3/4 | 68.3 | 45.8 | 6104517 | 16.2 | 158 | 14.5 | 143 | 6104617 | 17.1 | 168 | 15.4 | 151 |
| 32 | 1-5/16 | 4 | 77.7 | 52.1 | 6104518 | 18.4 | 180 | 16.5 | 162 | 6104618 | 19.6 | 192 | 17.6 | 173 |
| 36 | 1-1/2 | 4-1/2 | 98.4 | 66.0 | 6104520 | 23.3 | 228 | 20.9 | 205 | 6104620 | 24.5 | 240 | 22.0 | 216 |
| 40 | 1-5/8 | 5 | 121.0 | 81.2 | 6104522 | 28.9 | 283 | 26.0 | 255 | 6104622 | 30.6 | 300 | 27.6 | 270 |
| 44 | 1-3/4 | 5-1/2 | 147.0 | 98.6 | 6104523 | 34.3 | 336 | 30.9 | 302 | 6104623 | 36.7 | 360 | 33.1 | 324 |
| 48 | 2 | 6 | 175.0 | 117.4 | 6104525 | 41.0 | 402 | 36.9 | 362 | 6104625 | 43.5 | 426 | 39.1 | 383 |
| 52 | 2-1/8 | 6-1/2 | 205.0 | 137.5 | 6104526 | 49.0 | 480 | 44.1 | 432 | 6104626 | 52.0 | 510 | 46.8 | 459 |
| 56 | 2-1/4 | 7 | 238.0 | 159.6 | 6104527 | 55.1 | 540 | 49.6 | 486 | 6104627 | 58.2 | 570 | 52.3 | 513 |
| 60 | 2-1/2 | 7-1/2 | 273.0 | 183.1 | 6104528 | 61.2 | 600 | 55.1 | 540 | 6104628 | 64.9 | 636 | 58.4 | 572 |
| 64 | 2-5/8 | 8 | 311.0 | 208.6 | 6104530 | 68.6 | 672 | 61.7 | 605 | 6104630 | 73.5 | 720 | 66.1 | 648 |
| 72 | 3 | 9 | 393.0 | 263.6 | 6104533 | 86.9 | 852 | 78.2 | 767 | 6104633 | 91.8 | 900 | 82.7 | 810 |
| 80 | 3-1/4 | 10 | 486.0 | 326.0 | 6104536 | 110.2 | 1080 | 99.2 | 972 | 6104636 | 116.3 | 1140 | 104.7 | 1026 |
| 88 | 3-5/8 | 11 | 588.0 | 394.4 | 6104538 | 129.8 | 1272 | 116.8 | 1145 | 6104638 | 137.1 | 1344 | 123.4 | 1210 |
| 96 | 4 | 12 | 699.0 | 468.8 | 6104540 | 153.1 | 1500 | 137.8 | 1350 | 6104640 | 161.6 | 1584 | 145.5 | 1426 |
| 104 | 4-1/4 | 13 | 821.0 | 550.7 | 6104542 | 183.7 | 1800 | 165.3 | 1620 | 6104642 | 195.9 | 1920 | 176.3 | 1728 |
| 112 | 4-5/8 | 14 | 952.0 | 638.5 | 6104545 | 208.2 | 2040 | 187.3 | 1836 | 6104645 | 220.4 | 2160 | 198.4 | 1944 |
| 120 | 5 | 15 | 1090.0 | 731.1 | 6104548 | 232.7 | 2280 | 209.4 | 2052 | 6104648 | 244.9 | 2400 | 220.4 | 2160 |
| 128 | 5-1/4 | 16 | 1240.0 | 831.7 | 6104549 | 274.3 | 2688 | 246.9 | 2419 | 6104649 | 289.0 | 2832 | 260.1 | 2549 |
| 136 | 5-5/8 | 17 | 1400.0 | 939.0 | 6104551 | 306.1 | 3000 | 275.5 | 2700 | 6104651 | 324.5 | 3180 | 292.0 | 2862 |
| 144 | 6 | 18 | 1570.0 | 1053.0 | 6104552 | 342.9 | 3360 | 308.6 | 3024 | 6104652 | 367.3 | 3600 | 330.6 | 3240 |
| 160 | 6-5/8 | 20 | 1940.0 | 1301.2 | 6104555 | 410.2 | 4020 | 369.2 | 3618 | 6104655 | 434.7 | 4260 | 391.2 | 3834 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
